Round Duct Type Fans
Round Duct Type Fans are designed for use in various areas such as industrial facilities, offices, kitchens, homes, and residences. These fans feature a direct-coupled backward-curved blade radial design and, thanks to their compact structure, can be directly mounted into the duct in any required position.
These fans are available in diameters of 100-125-150-160-200-250-315 mm and various capacities, offering flexible use suitable for different ventilation needs. Thanks to their powerful airflow and low noise levels, they are effectively used in exhaust and discharge openings. Duct-type fans can be easily mounted on walls, floors, or ceilings using the mounting feet that come with them, without requiring additional brackets.
Directly connecting the fan impeller to the motor helps ensure dynamic and static balance, enabling fans to operate quietly and without vibration. They are typically used for comfort ventilation purposes to meet the need for fresh air and exhaust air. These features make Round Duct Type Fans a suitable and efficient option for various applications.
General Features
- X Areas of Use: Industrial facilities, offices, kitchens, homes, residences, etc.
- X The fans are direct-coupled, backward-curved radial fans and can be directly mounted into the duct in any required position.
- X Available in diameters and capacities of 100-125-150-160-200-250-315 mm.
- X Used in exhaust and discharge openings that require ventilation, featuring a powerful airflow and low noise level.
- X Duct-type fans can be easily mounted on walls, floors, and ceilings using mounting feet without the need for additional brackets.
- X The fan wheel is directly connected to the motor, and fans with dynamic and static balance operate quietly and without vibration.
- X It is generally used to meet the need for fresh air and exhaust air for comfort ventilation.

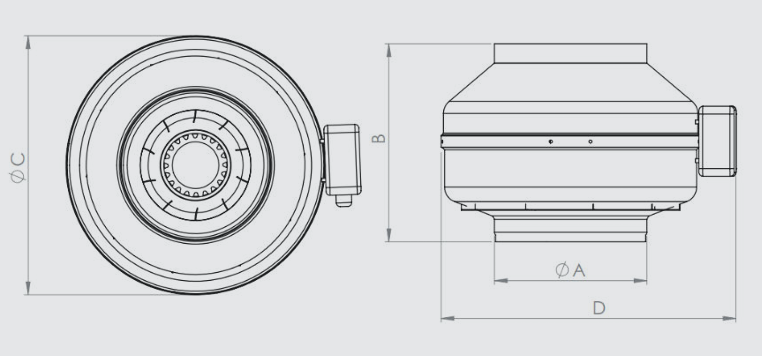

Dimensioning
Round Duct Type Fan
Model | A (mm) | B (mm) | C (mm) | D (mm) | Voltage (V) | Power (W) | 0 Pa Flow Rate (m3/h) | 100 Pa Flow Rate (m3/h) | 150 Pa Flow Rate (m3/h) |
X-YKYF-100 | 100 | 208 | 246 | 290 | 230 | 80 | 250 | 175 | 140 |
X-YKYF-125 | 120 | 208 | 246 | 290 | 230 | 80 | 320 | 230 | 180 |
X-YKYF-150 | 150 | 196 | 270 | 320 | 230 | 85 | 540 | 450 | 375 |
X-YKYF-200 | 200 | 255 | 333 | 380 | 230 | 122 | 920 | 820 | 780 |
X-YKYF-250 | 250 | 234 | 331 | 380 | 230 | 145 | 1180 | 1050 | 980 |
X-YKYF-315 | 315 | 283 | 401 | 450 | 230 | 210 | 2100 | 1900 | 1700 |
