Heat Recovery Device
Heat Recovery Units
Heat Recovery Units are used to improve energy efficiency in various locations such as homes, offices, hotels, business centers, schools, showrooms, stores, banks, and tourism facilities. These units utilize backward-curved, low-density blade plug fans, with AC fans being the standard choice, while more efficient EC fans are also available as an option.
Aluminum plate heat exchangers are used for thermal efficiency, and G4 filters are standard. Depending on requirements, F7 or HEPA filters with higher filtration capacity can also be selected. Optionally, water or electric heaters can be added to the device to meet heating needs. Additionally, a silencer and CO2 sensor can also be included in the devices upon request. These features make the Heat Recovery Device both a functional and environmentally friendly option.
General Features
- X Areas of use; Houses, Offices, Hotels, Business Centers, Schools, Showrooms, Shops, Banks, Tourism Facilities etc.
- X Backward-curved, low-speed plug fans.
- X A standard AC fan is used. An EC fan can be used as an option.
- X Aluminum plate heat exchangers are used for thermal efficiency.
- X Standard G4 filters are used. Optionally, F7 and HEPA filters can be used.
- X Optionally, a water-based or electric heater is used.
- X A silencer is used optionally.
- X An optional CO2 sensor is used.
Cash Register Types

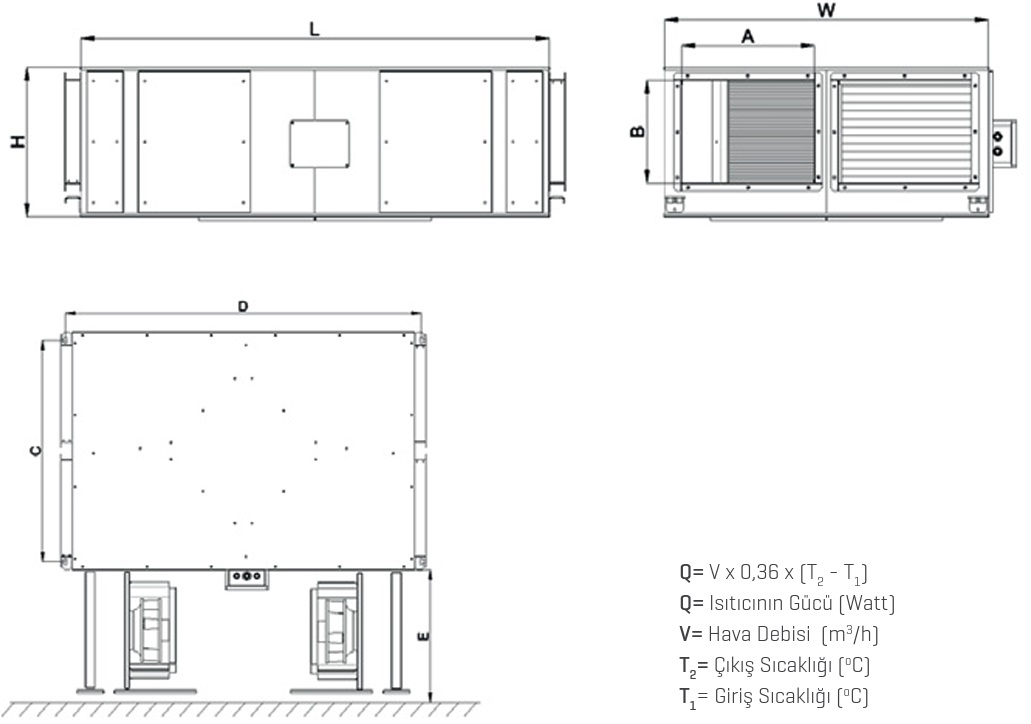

Dimensioning
| Model | L (mm) | W (mm) | H (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|---|
| X-IGK 04 | 960 | 600 | 305 | 200 | 150 | 530 | 1026 | 320 | 35 |
| X-IGK 07 | 980 | 650 | 355 | 230 | 200 | 580 | 1046 | 350 | 45 |
| X-IGK 10 | 1120 | 720 | 355 | 260 | 210 | 650 | 1086 | 400 | 55 |
| X-IGK 15 | 1160 | 800 | 385 | 300 | 240 | 730 | 1126 | 440 | 60 |
| X-IGK 20 | 1430 | 980 | 450 | 390 | 300 | 910 | 1496 | 550 | 105 |
| X-IGK 30 | 1590 | 1100 | 510 | 450 | 350 | 1030 | 1656 | 610 | 130 |
| X-IGK 40 | 1900 | 1126 | 620 | 510 | 460 | 1156 | 1966 | 660 | 160 |
| X-IGK 50 | 1930 | 1300 | 675 | 550 | 520 | 1230 | 1996 | 700 | 210 |
| X-IGK 60 | 1930 | 1300 | 675 | 550 | 520 | 1230 | 1996 | 700 | 210 |
Technical Details
IGK-H Capacity Ratings with AC Fan
| Model | Air Flow Rate (0 Pa Outside Device) | Air Flow Rate (150 Pa Outside the Device) | Total Power (W) | Sound Pressure db(A) |
|---|---|---|---|---|
| X-IGK 04 | 345 cubic meters per hour | 250 cubic meters per hour | 128 | 48 |
| X-IGK 07 | 610 cubic meters per hour | 500 m³/h | 270 | 59 |
| X-IGK 10 | 910 m³/h | 800 cubic meters per hour | 414 | 63 |
| X-IGK 15 | 1125 cubic meters per hour | 1000 m³/h | 424 | 58 |
| X-IGK 20 | 1580 m³/h | 1350 cubic meters per hour | 634 | 65 |
| X-IGK 30 | 2350 cubic meters per hour | 2000 cubic meters per hour | 1006 | 64 |
| X-IGK 40 | 3150 m³/h | 2,500 m³/h | 1006 | 65 |
| X-IGK 50 | 4155 m³/h | 3,500 cubic meters per hour | 1388 | 67 |
| X-IGK 60 | 5,250 cubic meters per hour | 4500 m³/h | 2600 | 68 |
EC Fan IGK Capacity Values
| Model | Air Flow Rate (0 Pa Outside Device) | Air Flow Rate (150 Pa Outside the Device) | Total Power (W) | Sound Pressure db(A) |
|---|---|---|---|---|
| X-IGK 04 | 450 cubic meters per hour | 370 cubic meters per hour | 166 | 47 |
| X-IGK 07 | 630 cubic meters per hour | 520 cubic meters per hour | 230 | 57 |
| X-IGK 10 | 930 cubic meters per hour | 800 cubic meters per hour | 336 | 60 |
| X-IGK 15 | 1160 cubic meters per hour | 1000 m³/h | 340 | 56 |
| X-IGK 20 | 1580 m³/h | 1500 cubic meters per hour | 770 | 63 |
| X-IGK 30 | 2700 cubic meters per hour | 2300 cubic meters per hour | 1000 | 61 |
| X-IGK 40 | 3,800 m³/h | 3,350 m³/h | 1580 | 62 |
| X-IGK 50 | 4400 m³/h | 3,900 m³/h | 1500 | 66 |
| X-IGK 60 | 5550 m³/h | 5050 m³/h | 2640 | 66 |
