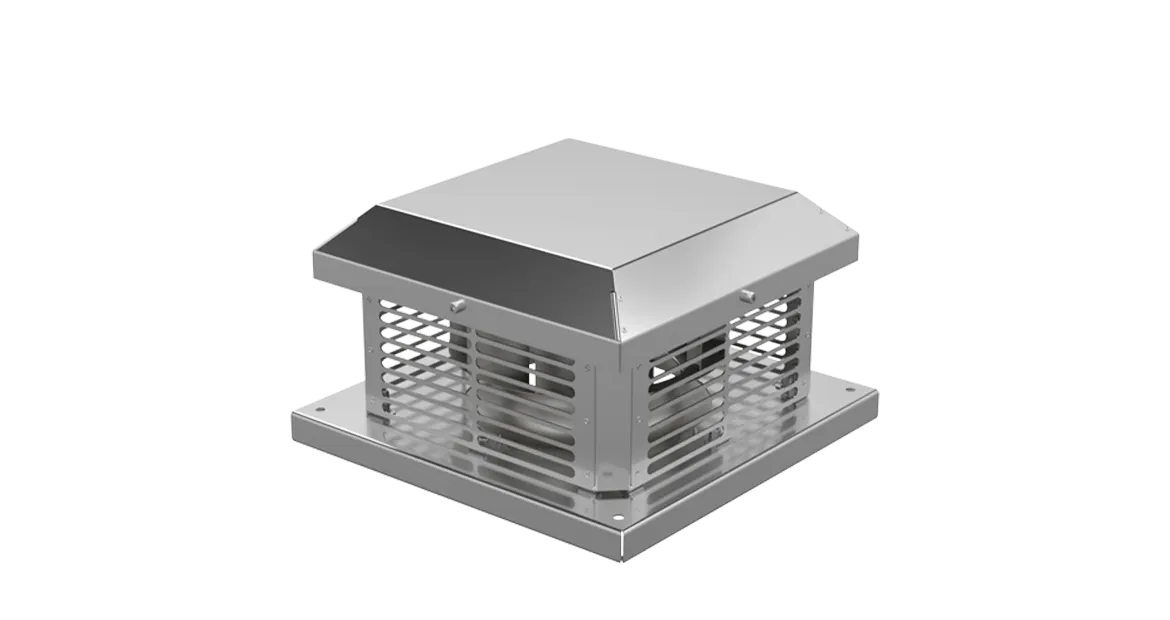

Horizontal Throw Roof Type Fans
Horizontal-Flow Roof-Mounted Fans are designed for use in industrial, office, kitchen, and residential ventilation. These fans are manufactured from corrosion-resistant galvanized steel, ensuring durability against harsh weather and environmental conditions.
The product is manufactured in two different model options: three-phase (380V) and single-phase (230V). Single-phase roof-mounted fans feature a direct-coupled, backward-curved blade radial fan design. Three-phase roof-mounted fans are backward-curved radial fans, and the motor's placement outside the airflow protects it from hot air and harmful elements. This feature allows the fan to operate continuously at 120°C and is an ideal choice for high-performance, trouble-free operation.
Both models feature motors with IP55 and Class F insulation ratings, ensuring the motors operate at high protection and safety standards. These features make Horizontal Throw Roof-Mounted Fans an effective and durable solution suitable for various ventilation requirements.
General Features
- X Usage Areas; It can be used in all kinds of industrial, office, kitchen and residential ventilation.
- X It is made of corrosion resistant galvanized steel.
- X There are two production options: three-phase (380V) and single-phase (230V).
- X It is a single-phase, roof-mounted, direct-coupled, backward-curved blade radial fan.
- X It is a three-phase roof-mounted radial fan with backward-curved blades. The motor being outside the airflow allows for continuous operation at 120°C. It is ideal for high performance and trouble-free operation.
- X The motors have IP55 and Class F insulation ratings.

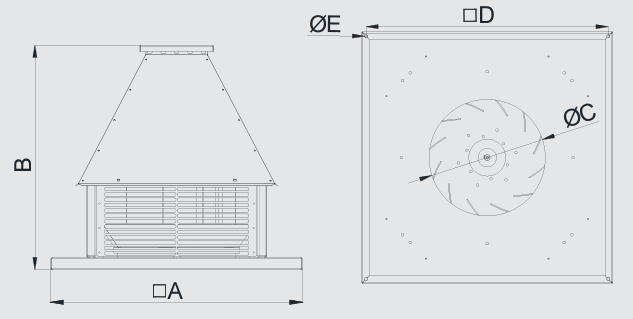

Dimensioning and Selection Table
Horizontal Blower Fan (380V)
Flow rate selections are based on 250 Pa.
|
Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Voltage (V) |
Power (kW) |
Debi (m3/h) |
Weight (Kg) |
|
X-CTF-250 |
620 |
583 |
257 |
590 |
9 |
380 |
0,37 |
3000 |
55 |
|
X-CTF-280 |
680 |
603 |
260 |
640 |
9 |
380 |
0,55 |
4500 |
60 |
|
X-CTF-315 |
720 |
642 |
291 |
690 |
9 |
380 |
1,1 |
6000 |
70 |
|
X-CTF-355 |
820 |
751 |
379 |
790 |
9 |
380 |
2,2 |
9000 |
80 |
|
X-CTF-400/1.1 |
870 |
761 |
395 |
840 |
9 |
380 |
1,1 |
9000 |
85 |
|
X-CTF-400/4.0 |
870 |
761 |
395 |
840 |
9 |
380 |
4,0 |
12000 |
105 |
|
X-CTF-450/2.2 |
950 |
936 |
430 |
920 |
9 |
380 |
2,2 |
12000 |
130 |
|
X-CTF-450/5.5 |
950 |
936 |
430 |
920 |
9 |
380 |
5,5 |
15000 |
138 |
|
X-CTF-450/7.5 |
950 |
936 |
430 |
920 |
9 |
380 |
7,5 |
18000 |
151 |
Single-Phase Horizontal Blower Fan (230V)
Flow rate selections are based on 150 Pa.
|
Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Voltage (V) |
Power (W) |
Debi (m3/h) |
Weight (Kg) |
|
X-CTF-1 |
320 |
175 |
30 |
280 |
145 |
230 |
66 |
375 |
6,5 |
|
X-CTF-2 |
350 |
190 |
30 |
310 |
190 |
230 |
100 |
780 |
8,3 |
|
X-CTF-3 |
360 |
210 |
30 |
320 |
170 |
230 |
150 |
1000 |
8,5 |
|
X-CTF-4 |
380 |
220 |
30 |
340 |
220 |
230 |
200 |
1200 |
9,7 |
|
X-CTF-5 |
410 |
220 |
30 |
370 |
220 |
230 |
250 |
1800 |
11 |
|
X-CTF-6 |
500 |
310 |
30 |
460 |
270 |
230 |
210 |
2500 |
17 |
|
X-CTF-7 |
570 |
365 |
30 |
530 |
310 |
230 |
500 |
3800 |
28 |
|
X-CTF-8 |
630 |
365 |
30 |
590 |
310 |
230 |
800 |
4800 |
31 |
