Aqueous Fume Scrubber
Aqueous Smoke Scrubber is used to wash the smoke and prevent the flame from damaging the duct system, especially in charcoal grills and wood-fired cooking systems. This device minimizes the risk of fire by providing an effective solution for smoke and flame control.
The device has a 3-stage filtration system offering high efficiency. The fully automated system is equipped with equipment such as circulation pump, mcc panel, solenoid valves and control panel. These components ensure efficient and trouble-free operation of the device.
Stainless nozzles are used in the construction of the device and the welded AISI 304 stainless steel case offers durability and long life. The Water Fume Scrubber can work in harmony with other ventilation devices and the building automation system, providing seamless integration within the overall ventilation and security system.
General Features
- X Areas of Use; It is used for smoke destruction and fire prevention in charcoal grills and wood-fired cooking systems.
- X High efficiency 3 stage filtration system is available.
- X There is a fully automated system with equipment such as circulation pump, mcc panel, solenoid valves, control panel.
- X Stainless nozzles are used.
- X Welded AISI 304 quality stainless steel case is used.
- X It has the ability to work in harmony with other ventilation devices and building automation system.
Material
|
|
Standard |
Option |
|
Safe deposit box |
AISI 304 grade
stainless |
AISI 316 quality
stainless |
|
1st Stage Oil Trap
filter |
AISI 304 grade
stainless |
AISI 316 quality
stainless |
|
2-3. Stage Drop
Trap filter |
Aluminum |
Aluminum |

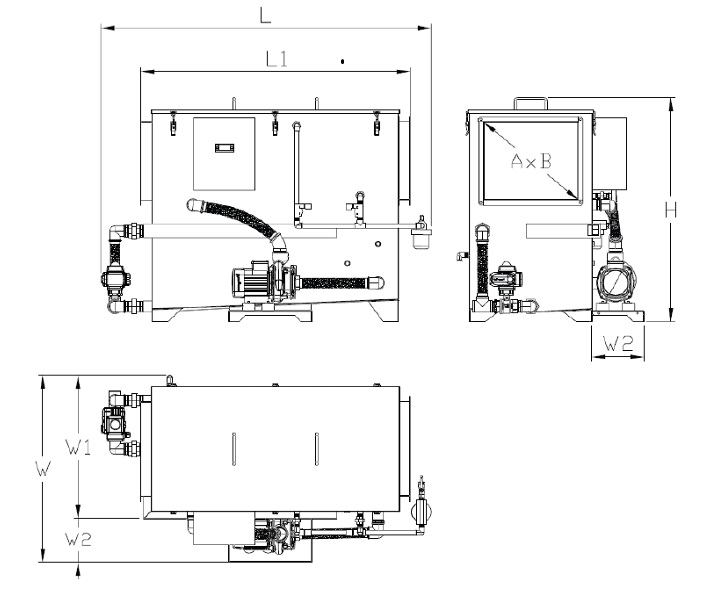

Dimensioning
Smoke Washing Device
|
Models |
L |
L1 |
W |
W1 |
W2 |
H |
A x B |
|
X-DYC-030 |
1610 |
1310 |
910 |
700 |
250 |
1050 |
375 x 455 |
|
X-DYC -050 |
1610 |
1310 |
1060 |
850 |
250 |
1210 |
600 x 550 |
|
X-DYC -075 |
1610 |
1310 |
1330 |
1100 |
250 |
1330 |
900 x 550 |
|
X-DYC -100 |
1610 |
1310 |
1600 |
1350 |
250 |
1440 |
1200 x 650 |
