Radial Jet Fan

Axial Jet Fans are designed specifically for use in ventilation systems in hotels, hospitals, residences, shopping centers, offices, and residential parking garages. These fans are manufactured from high-quality, corrosion-resistant galvanized steel and feature propellers made from specially alloyed aluminum with adjustable blade angles. The products are tested according to the EN 12101-3 Standard and are fire certified to withstand operation at 400°C for 2 hours.

Axial Jet Fans are manufactured in various diameters ranging from Ø315mm to Ø630mm and are offered with bidirectional, unidirectional, and dual-speed or single-speed options depending on the project. Jet Fan systems play an effective role in the extraction of harmful exhaust gases in parking lots and smoke in the event of a fire. These systems are divided into two types: Radial Jet Fans and Axial Jet Fans.

Electric motors are manufactured as standard for 380 V – 50 Hz or, upon request, for 400/415/440 V – 50 Hz. They are Class H, S1+S2, IP55 certified and rated for 2 hours at 400°C or 2 hours at 300°C, and are available in single-speed or dual-speed versions.

The impellers used in Axial Jet Fan models are manufactured from ST 52 steel blades or specially alloyed aluminum with adjustable blade angles, and can operate with the same performance in both blowing directions depending on the project. These impellers comply with international standards. Due to increased noise levels caused by high air discharge speeds, jet fans are typically used with silencers. These features make Axial Jet Fans a suitable and effective solution for various parking garage ventilation requirements.

General Features

Dimensioning and Selection Table

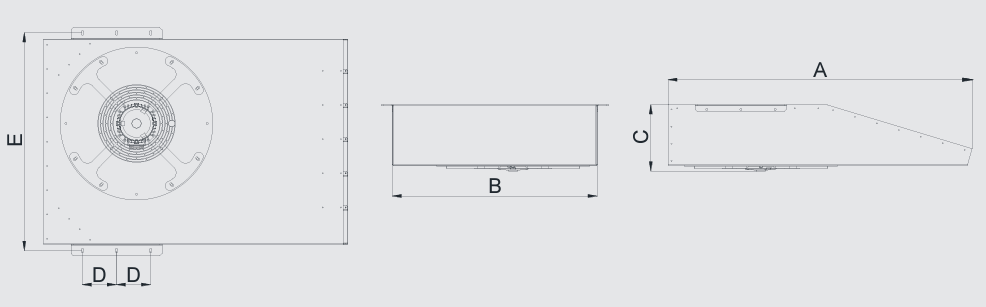

Radial Jet Fan
