Classic Filter Hoods
Classic Filter Hoods are designed for use in kitchens where there are no intensive cooking groups and the air exchange coefficient is below 30 changes. These hoods are used to exhaust the exhaust air from kitchens to the outside environment. The duct system with extractor fan connected to the filter section efficiently carries the exhaust air to the outside. A condensation duct around the perimeter of the hood helps to effectively manage kitchen vapors.
This type of hoods are alternatively produced with filtered models in cases that do not require high performance. It is made of AISI 304 stainless steel and can also be produced in galvanized or AISI 316 stainless steel depending on customer demand. The hood body is made of AISI 304 stainless steel sheet with a brushed appearance and the main elements are assembled with sealed connections for easy assembly. Sealing elements and welded connections are used where necessary. The corners of the hood are rounded, free of burrs and the lower corners are joined with sealed welded manufacturing to prevent harmful water from dripping.
General Features
- X Classic filter hoods are used in kitchens where there are no intensive cooking groups and the air exchange coefficient is below 30 changes.
- X It is used for exhausting the exhaust air from the location.
- X Thanks to the duct system with aspirator connected to the filter section, it gives the exhaust air to the outside environment.
- X It has a condensation duct that encircles the hood.
- X In case high performance hoods are not used, they are produced with filters to be used in their place.
- X It is produced from AISI 304 stainless steel. It can also be produced from galvanized or AISI 316 stainless steel according to customer request.
- X The hood body is manufactured from AISI 304 quality stainless steel sheet with brushed appearance. The main elements are collected with easy-to-install sealed connections.
- X Sealing elements or welded joints are used where necessary. Corners are rounded, free of burrs and have a condensation channel.
- X The bottom corners are sealed with welded manufacturing to prevent harmful water from dripping.
Material
|
|
Standard |
Option |
|
Material |
AISI 304 quality stainless steel sheet |
AISI 316 quality stainless steel sheet or galvanized |
|
Body Sheet Thickness |
0.8 mm |
1 and 1.2 mm |
|
Depth |
400 - 600 mm |
|
|
Exhaust Outlets |
Circular cross-section (Φ315 mm) |
Square or rectangular cross-section |
|
Fresh Air Inlets |
Circular cross-section (Φ250 mm) |
Square or rectangular cross-section |
|
Lighting |
LED Lamp |
|
|
Filter Material |
0.6 mm 304 quality stainless |
|
Dimensioning

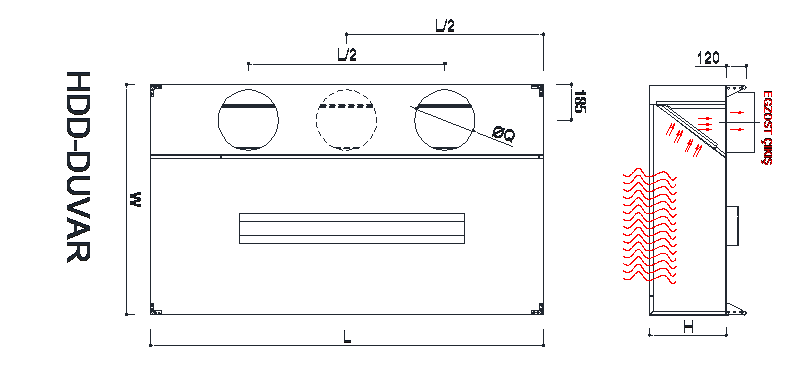

Wall Mounted Filter Hood
LENGTH (L) | DEPTH (W) | HEIGHT (H) | Q | LIGHTING | NUMBER OF EXHAUST CONNECTIONS |
650....1500 | 800....2000 | 400/600 | Ø315 | 1 | 1 |
1500....1700 | 400/600 | Ø315 | 1 | 1 | |
1700....2000 | 400/600 | Ø315 | 1 | 2 | |
2000....2600 | 400/600 | Ø315 | 1 | 2 |

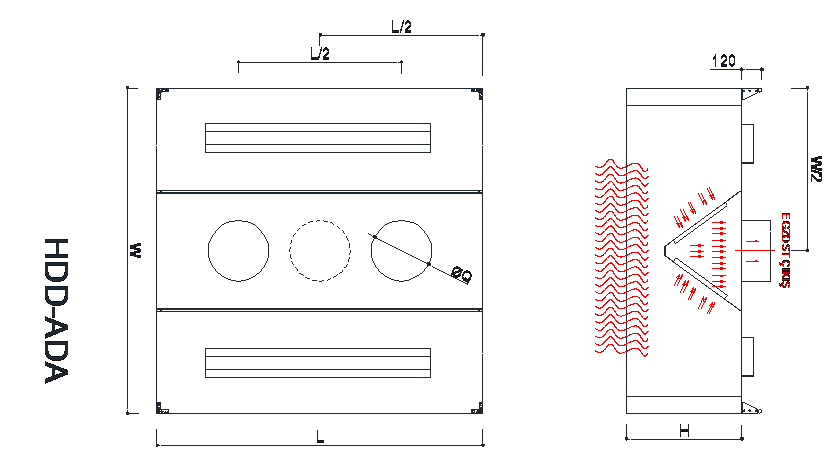

Island Type Hood with Filter
LENGTH (L) | DEPTH (W) | HEIGHT (H) | Q | LIGHTING | NUMBER OF EXHAUST CONNECTIONS |
1000....1500 | 1700....2800 | 400/600 | Ø400 | 2 | 1 |
1500....1700 | 400/600 | Ø400 | 2 | 1 | |
1700....2000 | 400/600 | Ø315 | 2 | 2 | |
2000....2900 | 400/600 | Ø315 | 2 | 3 |
