Duct Type Fans with External Motor
Outboard Motor Channel Type Fans are ideal for use in various areas such as industrial facilities, offices, kitchens, homes, and residences. These fans feature a backward-curved blade radial design driven by an outboard motor, which keeps the motor away from the airflow, reducing the negative effects of harsh operating conditions on the motor.
The motors are available in both single-phase and three-phase options and feature IP55 and Class F insulation. These features ensure that the motors operate at high protection and safety standards. All models are suitable for speed control, allowing users to adjust the fan speed according to their needs. The motor is mounted outside the airflow, making it resistant to operation at high temperatures up to 120°C.
These fans can be optionally manufactured with Ex-Proof (explosion-proof) features, making them particularly suitable for use in hazardous environments. The body is made of high-quality galvanized material that is resistant to corrosion, ensuring the fans are durable and long-lasting. These features make External Motor Channel Type Fans a suitable and efficient option for various applications.
General Features
- X Areas of Use: Industrial facilities, offices, kitchens, homes, residences, etc.
- X Fans are radial fans with backward-curved blades driven by a motor outside the airflow.
- X Keeping the engine out of the airflow allows it to operate under adverse conditions.
- X The motors are single-phase and three-phase, with IP55 and Class F insulation. All models are suitable for speed control.
- X Mounted outside the engine airflow and capable of withstanding operation up to 120 °C.
- X Optionally, it can be manufactured with Ex-Proof feature.
- X The body is made of high-quality galvanized steel that is resistant to corrosion.
Dimensioning

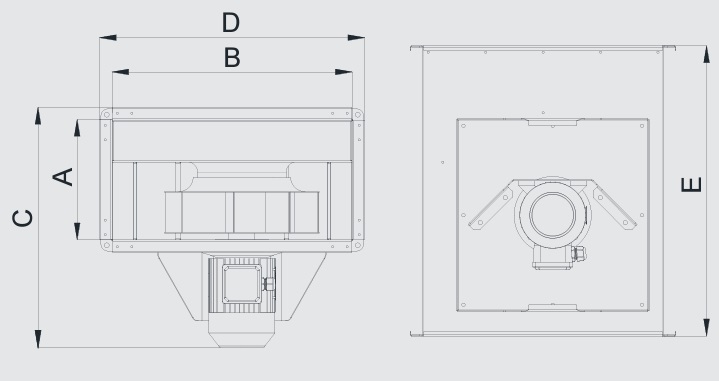

External Motor Channel Type Fan
|
Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Voltage (V) |
Power (kW) |
0 Pa Flow Rate (m3/h) |
150 Pa Flow Rate (m3/h) |
|
X-DKYF-280 |
250 |
500 |
469 |
550 |
650 |
380 |
0,18 |
1150 |
550 |
|
X-DKYF-315 |
250 |
500 |
495 |
550 |
600 |
380 |
0,25 |
1600 |
1100 |
|
X-DKYF-355 |
300 |
600 |
545 |
650 |
750 |
380 |
0,37 |
2350 |
1750 |
|
X-DKYF-400 |
400 |
700 |
665 |
750 |
800 |
380 |
0,55 |
3450 |
2850 |
|
X-DKYF-450 |
400 |
700 |
665 |
750 |
800 |
380 |
0,75 |
4950 |
4300 |
|
X-DKYF-500 |
500 |
800 |
765 |
850 |
900 |
380 |
1,10 |
7000 |
6400 |
|
X-DKYF-560 |
500 |
1000 |
790 |
1050 |
1050 |
380 |
1,50 |
9500 |
9000 |
