Vertical Throw Roof Type Fans
Vertical Throw Roof Fans are suitably designed for various applications such as industrial, office, kitchen and residential ventilation. These fans are made of corrosion-resistant galvanized steel, ensuring durability against various environmental conditions.
The fans are radial with backward curved blades and the motor is located outside the air stream, protecting the motor from harmful influences or hot air. This design allows the fan to operate continuously at 120°C and is ideal for long, trouble-free operation.
These fans, where the air flow is directed vertically thanks to the diverter, can be used effectively in situations where the exhausted air can damage the engine, especially in oily exhaust air in kitchens and in situations where hot air suction is required. The vertical throw structure ensures that the air flow is effectively thrown in the desired direction.
The motors are three-phase and 4-pole and have IP55 and Class F insulation classes. These features ensure that the motors operate at high protection and safety standards. These features of Vertical Throw Roof Type Fans make them a suitable and effective solution for various ventilation needs.
General Features
- X Usage Areas; It can be used in all kinds of industrial, office, kitchen and residential ventilation.
- X It is made of corrosion resistant galvanized steel.
- X Fans are radial fans with backward curved blades. The motor is out of the air flow, allowing continuous operation at 120°C.
- X Thanks to the diverter, the air flow is directed vertically.
- X Ideal for use in situations where the exhausted air is likely to damage the engine, oily exhaust air and where hot air suction is required.
- X Motors are three-phase, 4-pole, IP55 and Class F insulated.

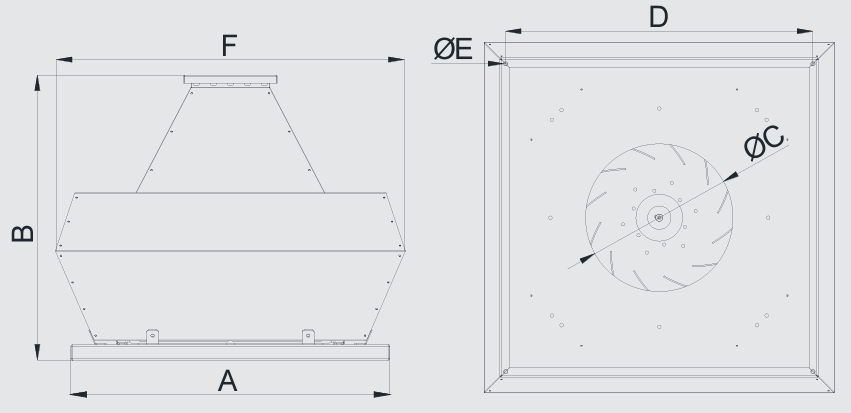

Dimensioning and Selection Table
Dikey Atışlı Çatı Tipi Fan (380V)
Debi seçimleri 250 Pa göre yapılmıştır.
Model | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | Voltage (V) | Power (kW) | Debi (m3/h) | Weight (Kg) |
X-ÇTF-D-250 | 620 | 583 | 257 | 590 | 800 | 380 | 0,37 | 3000 | 65 |
X-ÇTF-D-280 | 680 | 603 | 260 | 640 | 800 | 380 | 0,55 | 4500 | 70 |
X-ÇTF-D-315 | 720 | 642 | 291 | 690 | 850 | 380 | 1,1 | 6000 | 81 |
X-ÇTF-D-355 | 820 | 751 | 379 | 790 | 900 | 380 | 2,2 | 9000 | 92 |
X-ÇTF-D-400/1,1 | 870 | 761 | 395 | 840 | 950 | 380 | 1,1 | 9000 | 99 |
X-ÇTF-D-400/4,0 | 870 | 761 | 395 | 840 | 950 | 380 | 4 | 12000 | 119 |
X-ÇTF-D-450/2,2 | 950 | 936 | 430 | 920 | 1150 | 380 | 2,2 | 12000 | 151 |
X-ÇTF-D-450/5,5 | 950 | 936 | 430 | 920 | 1150 | 380 | 5,5 | 15000 | 159 |
X-ÇTF-D-450/7,5 | 950 | 936 | 430 | 920 | 1150 | 380 | 7,5 | 18000 | 172 |
