Rectangular Duct Type Fans
Rectangular Duct Fans are designed for use in various areas such as industrial facilities, offices, kitchens, homes, and residences. These fans are equipped with backward-curved, sparse-bladed rotors driven by a direct-coupled motor in all models. Rotor material options include plastic, galvanized steel, or aluminum.
Backward-curved blade radial rotors are available in various sizes and capacities ranging from 500 to 7600 m³/h, offering flexible use suitable for different ventilation needs. These fans can be directly mounted into ventilation ducts, saving space and providing ease of use. Thanks to their powerful airflow and low noise levels, they are effectively used in exhaust and discharge openings.
Fans that can be easily mounted on walls, floors, or ceilings using the mounting feet included, without requiring an additional console, possess dynamic and static balance thanks to the fan impeller being directly connected to the motor. This ensures the fans operate quietly and without vibration. The motors are single-phase, IP44-rated, and Class F insulated, and all models are designed to be speed-controllable. These features make Rectangular Duct Type Fans a suitable and efficient option for various applications.
General Features
- X Areas of Use: Industrial facilities, offices, kitchens, homes, residences, etc.
- X All models feature a rearward-inclined, low-pitch rotor driven by a direct-coupled motor.
- X Plastic, galvanized steel, or aluminum are available as rotor materials.
- X Backward-curved blade radial rotors are available in various sizes and capacities ranging from 500 to 7600 m³/h.
- X Can be directly mounted to ventilation ducts, saving space and providing ease of use.
- X Used in exhaust and discharge openings that require ventilation, featuring a powerful airflow and low noise level.
- X Duct-type fans can be easily mounted on walls, floors, and ceilings using mounting feet without the need for additional brackets.
- X The fan wheel is directly connected to the motor, and fans with dynamic and static balance operate quietly and without vibration.
- X The motors are single-phase, IP44 rated, and Class F insulated. All models are suitable for speed control.
Dimensioning

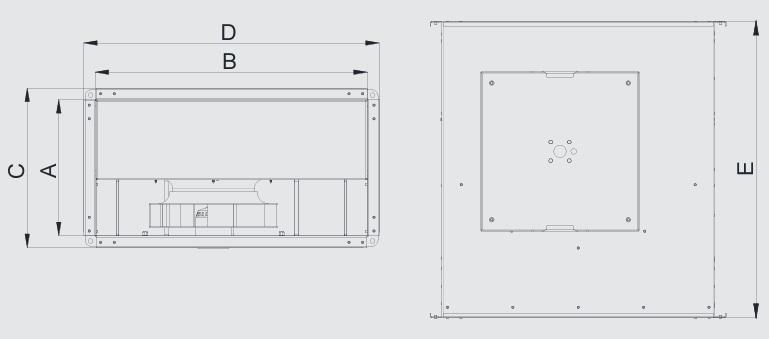

Rectangular Duct Type Fan
|
Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Voltage (V) |
Power (W) |
0 Pa Flow Rate (m3/h) |
150 Pa Flow Rate (m3/h) |
|
X-DKYF-30/15 |
150 |
300 |
200 |
350 |
400 |
230 |
66 |
540 |
370 |
|
X-DKYF-40/20A |
200 |
400 |
250 |
450 |
500 |
230 |
100 |
920 |
780 |
|
X-DKYF-40/20B |
200 |
400 |
250 |
450 |
500 |
230 |
150 |
1190 |
990 |
|
X-DKYF-50/25 |
250 |
500 |
300 |
550 |
550 |
230 |
200 |
1410 |
1210 |
|
X-DKYF-60/30 |
300 |
600 |
350 |
650 |
650 |
230 |
250 |
2100 |
1780 |
|
X-DKYF-60/35 |
350 |
600 |
400 |
650 |
750 |
230 |
210 |
3200 |
2500 |
|
X-DKYF-70/40 |
400 |
700 |
450 |
750 |
800 |
230 |
500 |
4420 |
3800 |
|
X-DKYF-80/50 |
500 |
800 |
550 |
850 |
900 |
230 |
800 |
5800 |
4750 |
|
X-DKYF-100/50 |
500 |
100 |
550 |
1050 |
1050 |
230 |
1550 |
8200 |
7200 |
