High Impact Swirl Diffuser
Ideal for high-ceilinged spaces such as conference halls, gymnasiums, atriums, hypermarkets and factory production areas, this product creates optimal air throw characteristics in both heating and cooling modes thanks to its adjustable blade mechanism. Its decorative appearance adds to the aesthetics of the space and is perfectly suited for ceiling heights of 3.80 meters and above. These features provide a flexible and effective air conditioning solution according to the needs of the area of use.
General Features
- X It can be used in spaces with high ceilings such as conference halls, sports halls, atriums, hypermarkets and factory production areas.
- X With the adjustable blade mechanism, the most suitable throwing characteristic for heating and cooling can be created.
- X Their appearance is decorative.
- X Suitable for areas with 3.80m and higher ceilings.
Material
- STANDARD: Production from aluminum profile
- OPTIONAL X
Case Types / Dimensioning

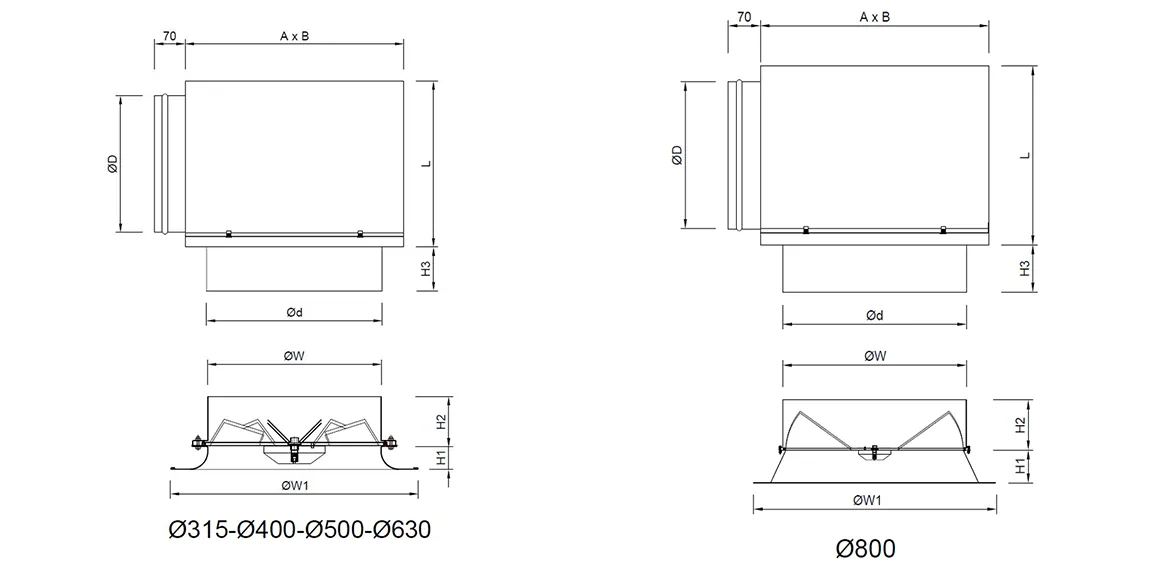

SIZE | ØW | ØW1 | H1 | H2 | H3 | Ød | A | B | L | ØD | ØW2 |
Ø315 | 313 | 480 | 50 | 75 | 100 | 319 | 435 | 435 | 280 | 248 | 380 |
Ø400 | 398 | 550 | 50 | 110 | 150 | 402 | 500 | 500 | 380 | 313 | 475 |
Ø500 | 498 | 650 | 50 | 120 | 160 | 502 | 620 | 620 | 430 | 353 | 570 |
Ø630 | 628 | 780 | 50 | 120 | 170 | 632 | 750 | 750 | 470 | 398 | 700 |
Ø800 | 798 | 1050 | 135 | 200 | 250 | 802 | 1000 | 1000 | 570 | 498 | 880 |
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
DIMENSION (Ød mm) The firing distances in the table are calculated by setting ∆T= 0 for heating. Comfort Level is 1.80m. Arrival speed is 0.25 m/s.|
315 |
400 |
500 |
630 |
800 |
|
Flow rate (m3/h) |
Pa |
La (m) |
dB (A)] |
Pa |
La (m) |
dB (A)] |
Pa |
La (m) |
dB (A)] |
Pa |
La (m) |
dB (A)] |
Pa |
La (m) |
dB (A)] |
|
250 |
10 |
1,3 |
24 |
|
|
|
|
|
|
|
|
|
|
|
|
|
375 |
22 |
2,1 |
31 |
|
|
|
|
|
|
|
|
|
|
|
|
|
500 |
40 |
3,0 |
40 |
15 |
2,2 |
22 |
|
|
|
|
|
|
|
|
|
|
625 |
61 |
4,0 |
47 |
23 |
2,9 |
27 |
12 |
2,1 |
22 |
|
|
|
|
|
|
|
750 |
89 |
5,1 |
54 |
34 |
3,7 |
32 |
18 |
2,8 |
25 |
|
|
|
|
|
|
|
875 |
120 |
6,1 |
59 |
46 |
4,4 |
36 |
22 |
3,4 |
32 |
|
|
|
|
|
|
|
1000 |
156 |
7,2 |
69 |
61 |
5,3 |
40 |
29 |
3,7 |
40 |
12 |
2,9 |
23 |
|
|
|
|
1500 |
|
|
|
137 |
8,8 |
54 |
65 |
6,6 |
49 |
27 |
4,9 |
34 |
14 |
3,6 |
26 |
|
2000 |
|
|
|
|
|
|
117 |
9,2 |
56 |
47 |
6,9 |
42 |
24 |
5,1 |
34 |
|
2500 |
|
|
|
|
|
|
181 |
11,0 |
65 |
74 |
9,2 |
48 |
38 |
6,8 |
41 |
|
3000 |
|
|
|
|
|
|
|
|
|
106 |
11,6 |
54 |
55 |
8,5 |
47 |
|
3500 |
|
|
|
|
|
|
|
|
|
145 |
14,1 |
58 |
75 |
10,3 |
53 |
|
4000 |
|
|
|
|
|
|
|
|
|
|
|
|
98 |
12,2 |
58 |
|
4500 |
|
|
|
|
|
|
|
|
|
|
|
|
124 |
14,2 |
63 |
|
Pa |
La(m) |
sdB(A)] |
|
Pressure Loss |
Firing Distance |
Sound Level |
-
Winter Mode
-
Summer Mode
|
Heating Mode (ΔT) |
4 |
6 |
8 |
10 |
12 |
|
Firing Distance Multiplier |
0,88 |
0,82 |
0,81 |
0,71 |
0,64 |
|
Cooling Mode (ΔT) |
4 |
6 |
8 |
10 |
12 |
|
Firing Distance Multiplier |
1,11 |
1,17 |
1,23 |
1,29 |
1,35 |

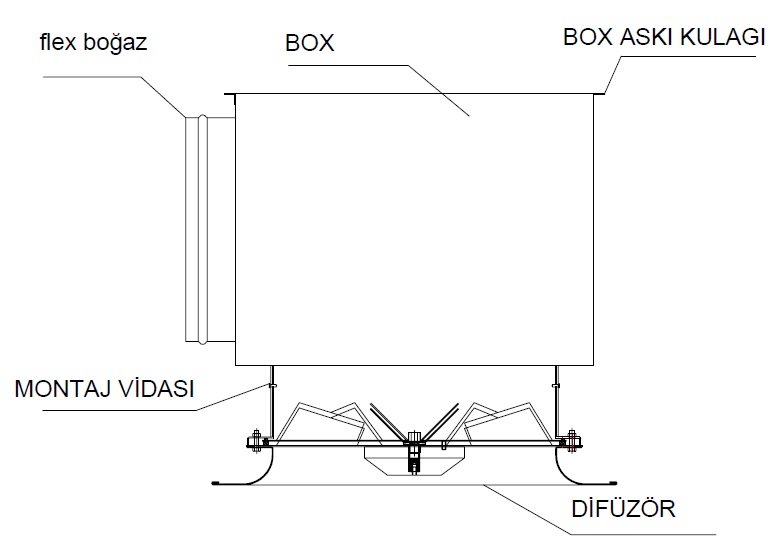

Mounting Options / Hole Sizes
| Mounting Method | Detail |
| Koprulu |  |
| Screw |  |
Accessories
- X Tipper
- X Motorized
