VAV Box Unit

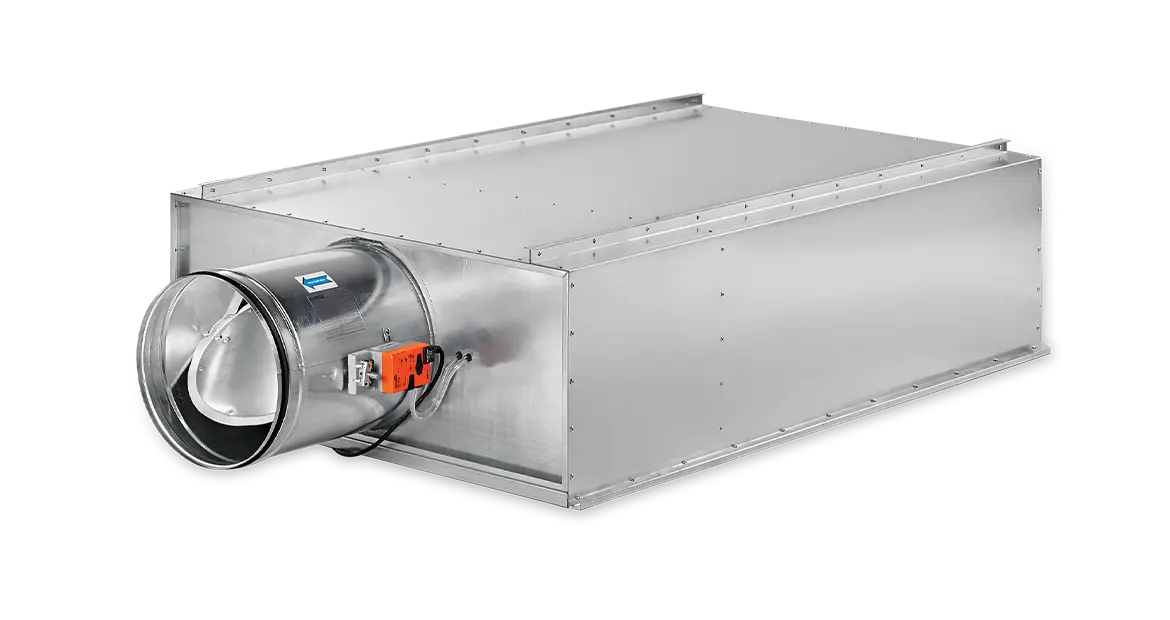

The VAV Box Unit is designed for variable air volume systems and duct pressure control applications. Its ability to calibrate with high precision between 150 and 5000 m³/h makes this unit suitable for various airflow requirements. Galvanized or stainless steel material options are available for production, providing durability and flexibility for different operating conditions. Equipped with an average differential pressure sensor for air flow measurement, this unit also includes a control damper and integrated silencer, which reduces airborne noise and increases system efficiency.

General Features

Used for variable air volume systems and duct pressure control applications.
High-precision calibration is provided for flow rates between 150 and 5000 m³/h.
It has the capability to produce galvanized or stainless steel products.
It includes an average differential pressure sensor for airflow measurement, a control damper, and an integrated silencer to reduce airborne noise.

Material

STANDARD: X Galvanized steel casing and blades X Blades and differential pressure tubes are made of aluminum profile. X Belimo damper motor X Aluminum measuring probe X Plastic Sensor Tubes
OPTIONAL: X Stainless coated steel case and sash

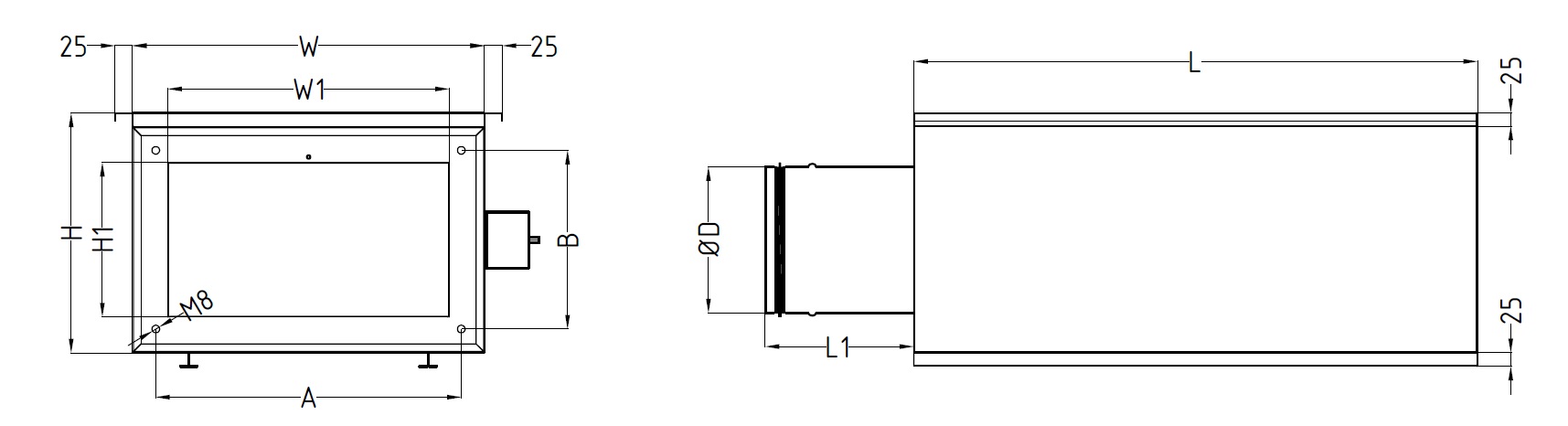

Case Types / Dimensioning

Type 1

CAP	L	W	H	A	B	W1	H1
125	1000	300	250	234	184	200	150
160	1000	410	250	344	184	310	150
200	1200	560	300	494	234	460	200
250	1200	700	300	634	234	600	200
315	1200	900	350	834	284	800	250
400	1200	1000	450	934	384	900	350

Type 2

W1	H1	L	A	B	W	H
200	100	1000	W1+34	H1+34	W1+100	H1+100
250	100	1000	W1+34	H1+34	W1+100	H1+100
300	100	1000	W1+34	H1+34	W1+100	H1+100
350	100	1000	W1+34	H1+34	W1+100	H1+100
300	150	1000	W1+34	H1+34	W1+100	H1+100
350	150	1000	W1+34	H1+34	W1+100	H1+100
400	150	1000	W1+34	H1+34	W1+100	H1+100
450	150	1000	W1+34	H1+34	W1+100	H1+100
400	200	1200	W1+34	H1+34	W1+100	H1+100
450	200	1200	W1+34	H1+34	W1+100	H1+100
500	200	1200	W1+34	H1+34	W1+100	H1+100
550	200	1200	W1+34	H1+34	W1+100	H1+100
600	200	1200	W1+34	H1+34	W1+100	H1+100
600	300	1200	W1+34	H1+34	W1+100	H1+100
650	300	1200	W1+34	H1+34	W1+100	H1+100
700	300	1200	W1+34	H1+34	W1+100	H1+100
750	300	1200	W1+34	H1+34	W1+100	H1+100
800	300	1200	W1+34	H1+34	W1+100	H1+100
850	300	1200	W1+34	H1+34	W1+100	H1+100
900	300	1200	W1+34	H1+34	W1+100	H1+100
950	300	1200	W1+34	H1+34	W1+100	H1+100
1000	300	1200	W1+34	H1+34	W1+100	H1+100

Surface Coating

STANDARD: X Galvanized Case
OPTIONAL: X Insulated Outer Case

Election Table

TIP – 1 Flow Rate (m³/h)
CAP	2	4	6	8	10	12
Ø125	86	171	257	342	428	513
Ø160	141	282	423	564	705	847
Ø200	222	443	665	886	1108	1329
Ø250	348	695	1043	1390	1738	2086
Ø315	554	1107	1661	2215	2769	3322
Ø400	895	1791	2686	3581	3376	5372
Pressure Loss	20	25	30	40	60	80

					Flow-Induced Noise Level							Sound Level
Diameter	Air velocity [m/s]		Air Flow Rate [^m³/h]		100 [Pa]		200 [Pa]	400 [Pa]		800 [Pa]		100 [Pa]	200 [Pa]		400 [Pa]		800 [Pa]
125	2		86							19					21		23
	4		171				18	20		26					23		28
	6		257		17		22	25		32			19		26		31
	8		342		19		25	31		35			25		33		38
	10		428		21		26	33		37		20	24		31		36
160	2		141					22		23					22		27
	4		282					25		27			18		26		31
	6		423		21		24	30		33			21		28		33
	8		564		24		27	33		36		18	24		31		36
	10		705		24		30	34		39		21	27		33		38
200	2		222					23		29					22		29
	4		443		20		21	28		34			20		27		34
	6		665		22		26	32		37			24		29		37
	8		886		24		30	35		39		19	26		32		39
	10		1108		26		32	38		43		23	29		34		41
250	2		348				20	29		36					21		28
	4		695		21		28	34		40			22		28		34
	6		1043		25		31	39		44		18	25		32		37
	8		1390		29		34	41		47		22	28		34		40
	10		1738		32		38	43		48		25	31		36		42
315	2		554				22	32		40					21		30
	4		1107		22		30	37		43			23		27		35
	6		1661		25		33	41		47		18	25		32		38
	8		2215		29		37	43		49		21	29		34		41
	10		2769		32		39	45		52		25	32		37		44
400	2		895		19		25	37		44					27		34
	4		1791		26		33	41		48			24		31		38
	6		2686		31		37	45		51		22	27		35		41
	8		3581		35		41	47		53		26	31		37		43
	10		3376		38		44	49		56		29	34		39		46
TYPE – 2 FLOW RATE (M3/H)
W		H		Air velocity (m/s)
				2		4			6		8			10		12
				Air Flow Rate (m3/h)
200		100		56		112			168		225			281		337
250		100		70		140			211		281			351		421
300		100		84		168			253		337			421		505
350		100		98		197			295		393			491		590
300		150		126		253			379		505			632		758
350		150		147		295			442		590			737		885
400		150		168		337			505		674			842		1011
450		150		190		379			569		758			948		1137
400		200		225		449			674		899			1123		1348
450		200		253		505			758		1011			1264		1516
500		200		281		562			842		1123			1404		1685
550		200		309		618			927		1236			1544		1853
600		200		337		674			1011		1348			1685		2022
600		300		505		1011			1516		2022			2527		3033
650		300		548		1095			1643		2190			2738		3285
700		300		590		1179			1769		2359			2948		3538
750		300		632		1264			1895		2527			3159		3791
800		300		674		1348			2022		2696			3370		4044
850		300		716		1432			2148		2864			3580		4296
900		300		758		1516			2274		3033			3791		4549
950		300		800		1601			2401		3201			4001		4802
1000		300		842		1685			2527		3370			4212		5054

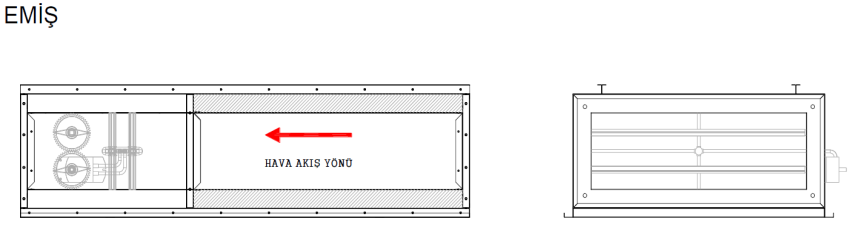

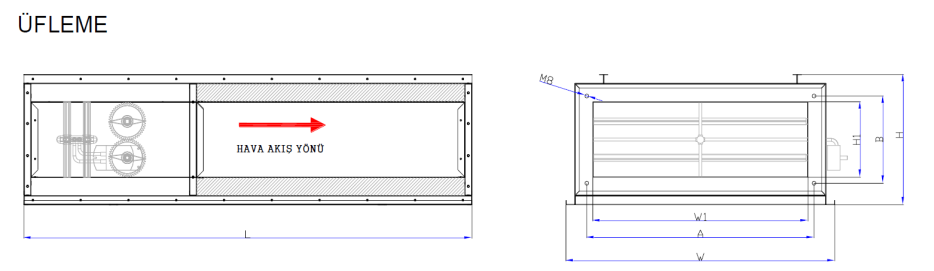

Assembly Detail

Commissioning

VAV - variable operation Vmin - Vmax

CAV - step mode CLOSED / Vmin / Vmid / Vmax / OPEN

Accessories

STANDARD: X Electric Heater
OPTIONAL X

Fast Communication
