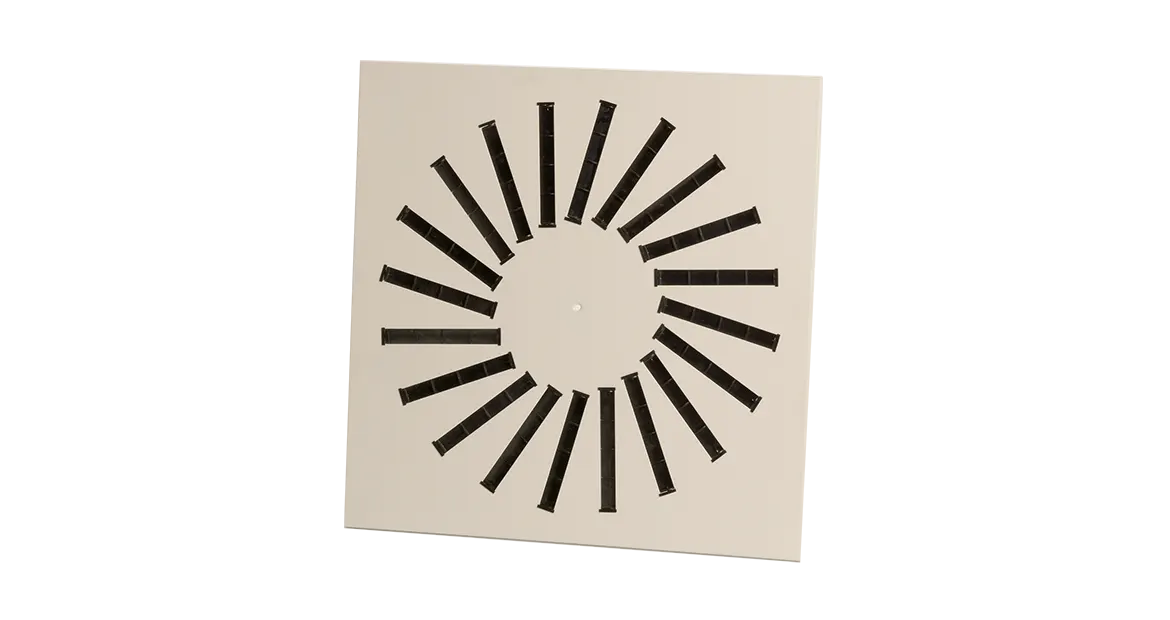

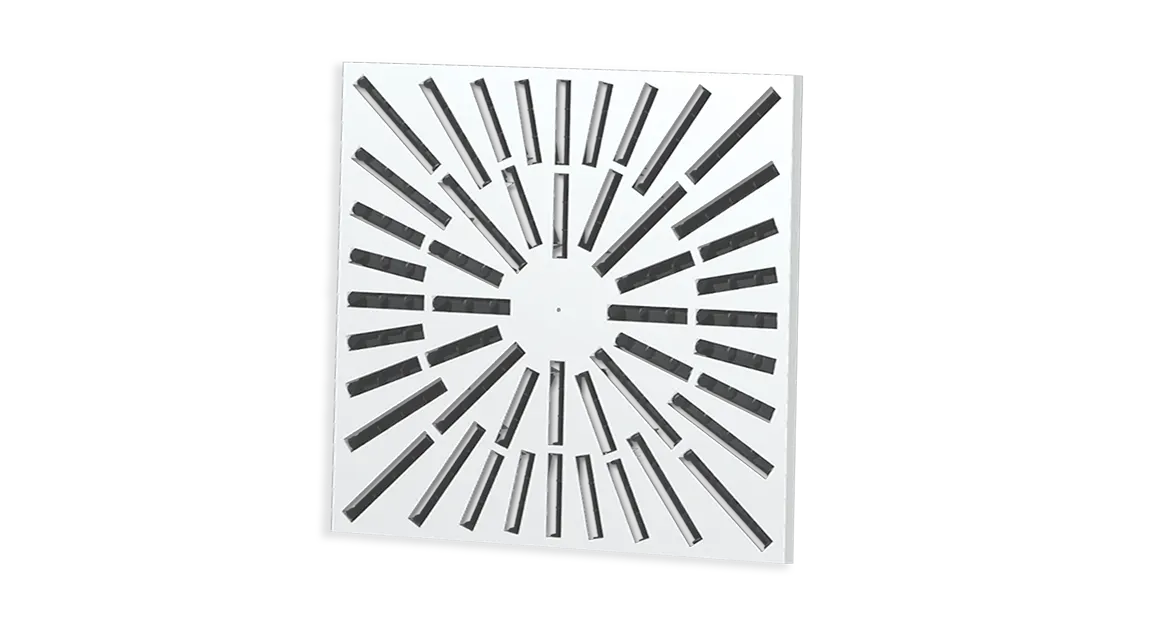

Swirl Diffuser
This product can be manufactured in square or circular shapes to meet architectural requirements. Its adjustable blades allow the conditioned airflow to be directed in the desired direction. Its compatibility with Ready-Made Aluminum Suspended Ceiling Systems and Metal Suspended Ceiling Systems creates both an aesthetic and functional ceiling appearance. Its suitability for use in both intake and exhaust ducts makes it an ideal choice for spaces with ceiling heights ranging from 2.60 to 4.00 meters. With these features, it provides a user-friendly experience in terms of both design and usage.
General Features
- X Can be produced in square or circular shapes according to architectural requirements.
- X It can direct the climate-controlled airflow with its adjustable blades.
- X Compatible with ready-made aluminum suspended ceiling systems and metal suspended ceiling systems.
- X Provides a uniform ceiling appearance with its usability in suction and exhaust lines.
- X Recommended for ceilings with heights between 2.60 and 4.00 meters.
Material
- STANDARD: Galvanized steel – Wings made of plastic
- OPTIONAL: Stainless steel

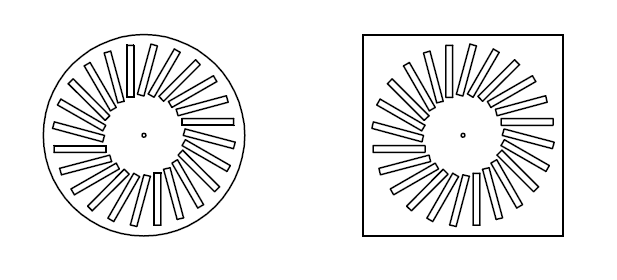

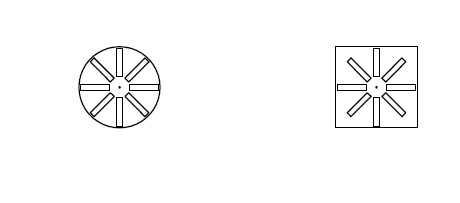

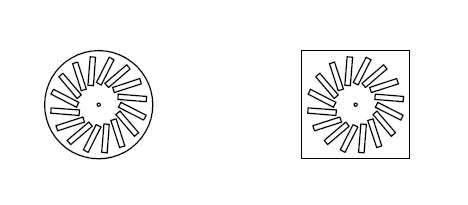

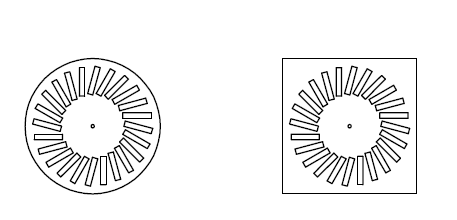

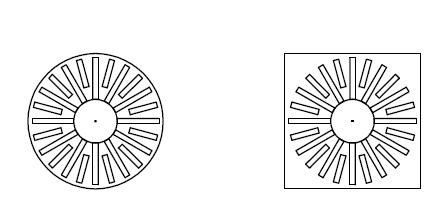

Case Types / Dimensioning
|
TYPE – 1 / Ø300 mm – 300 x 300 mm |
TYPE – 2 / Ø300 mm – 300 x 300 mm |
|
|
|
|
TYPE – 1 / Ø400 mm – 400 x 400 mm |
TYPE – 2 / Ø400 mm – 400 x 400 mm |
|
|
|
|
TYPE – 1 / Ø500 mm – 500 x 500 mm |
TYPE – 2 / Ø500 mm – 500 x 500 mm |
|
|
|
|
TYPE – 1 / Ø600 mm – 600 x 600 mm |
TYPE – 2 / Ø600 mm – 600 x 600 mm |
|
|
|
|
TYPE – 1 / Ø800 mm – 800 x 800 mm |
TYPE – 2 / Ø800 mm – 800 x 800 mm |
|
|
|
ELECTION TABLE | ||
TYPE-1 | ||
Ø300 mm – 300 x 300 mm | Ø400 mm – 400 x 400 mm | Ø500 mm – 500 x 500 mm |
|
|
|
Ø600 mm – 600 x 600 mm | Ø800 mm – 800 x 800 mm |
|
|
|
|
TYPE-2 | ||
Ø300 mm – 300 x 300 mm | Ø400 mm – 400 x 400 mm | Ø500 mm – 500 x 500 mm |
|
|
|
Ø600 mm – 600 x 600 mm | Ø800 mm – 800 x 800 mm |
|
|
|
|
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
|
MOUNTING OPTIONS – HOLE DIMENSIONS |
|
|
Mounting Method |
Detail |
|
From the belly |
![]() |
|
Screw |
![]() |
|
Karolaj |
![]() |
Accessories
- X
