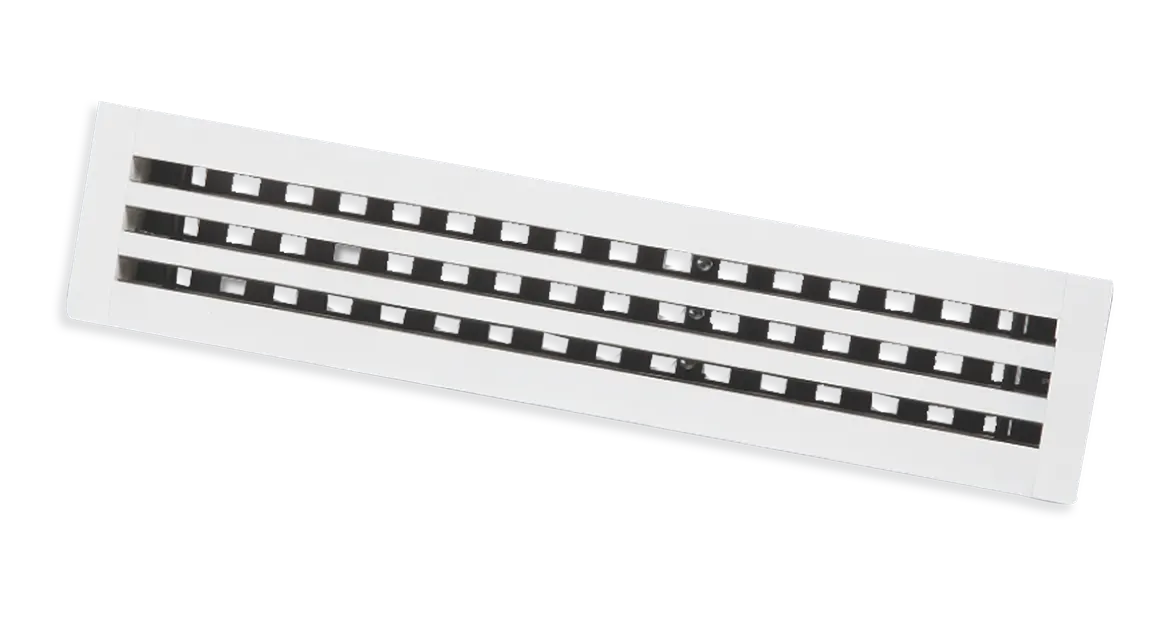

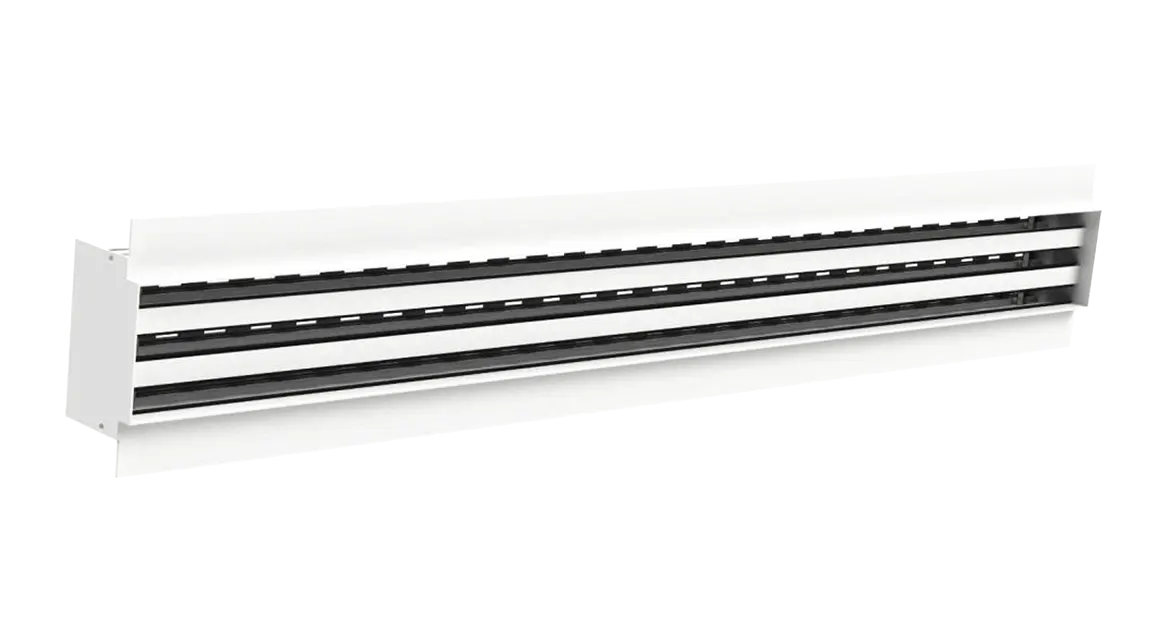

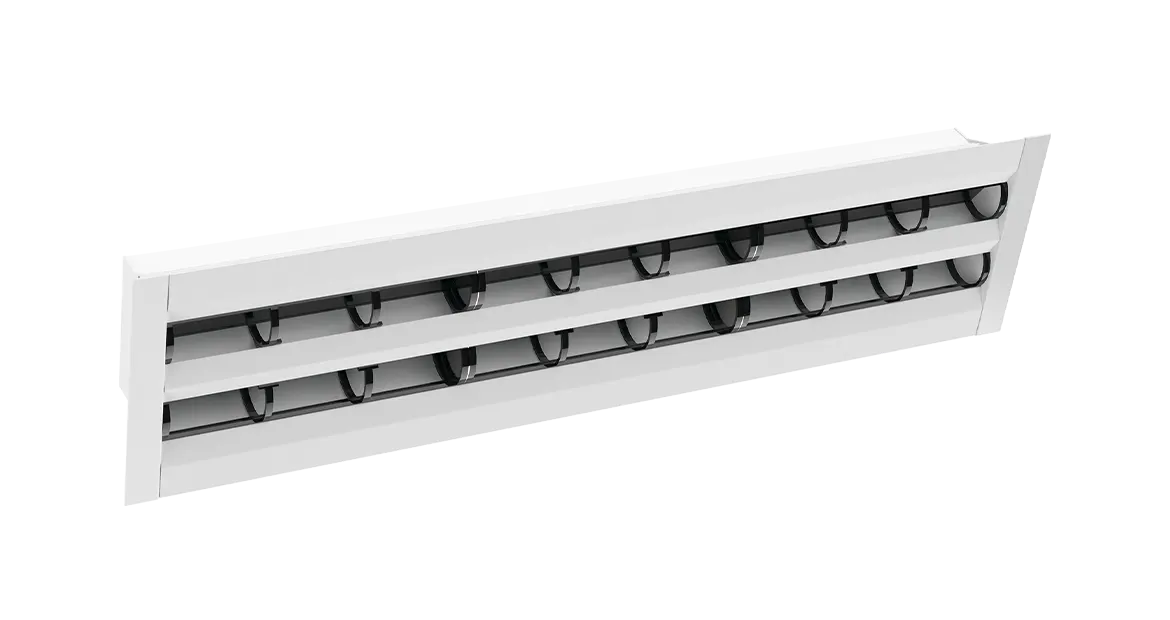

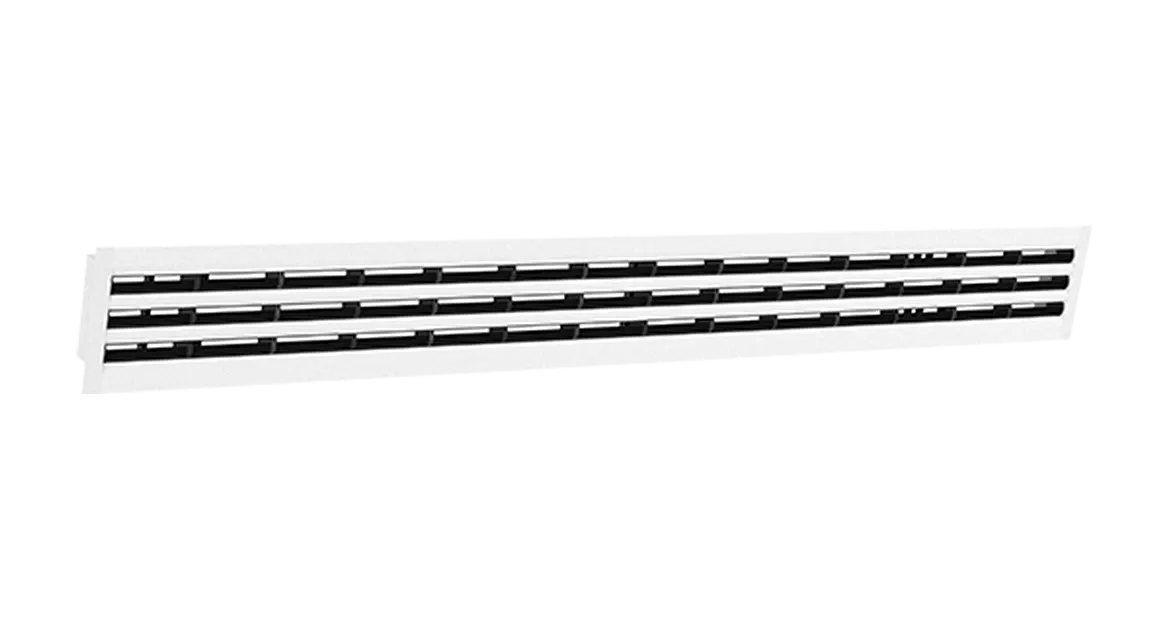

Slot Diffusers
This product is ideal for meeting comfort values in rooms with difficult air conditioning and is preferred for its architectural design and aerodynamic structure as well as its functional features. Decorative and modular, it allows convenient use along long lines or in corners. It can be used as a supply or return diffuser in both ceiling and wall applications and is suitable for horizontal throw from the ceiling. In cooling applications, it optimizes air distribution by creating an effective throw geometry with the Coanda effect.
General Features
- X Ideal for meeting comfort values in spaces that are difficult to air condition.
- X It is preferred for its architectural design and functional features. It has an aerodynamic structure.
- X Decorative and modular. It can be used along long lines (wall to wall) or in corners.
- X Suitable for high air flow rates.
- X They are used as feed or return diffusers in ceiling and wall applications. Suitable for horizontal shooting from the ceiling. Creates effective throw geometry in cooling applications with Coanda effect.
Material
- STANDARD: Production from aluminum profile
- OPTIONAL X
Case Types / Dimensioning
|
|
|
|
1 SLOT |
2 SLOTS |
|
|
 |
|
3 SLOTS |
4 SLOTS |
 |
 |
|
|
Frame Size |
Required Hole Size |
Height |
Box Dimension |
|

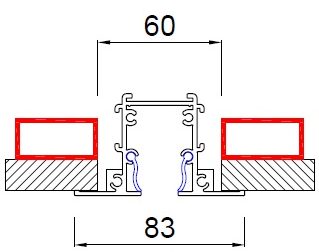

1 SLOT |
83 mm |
(W + 10 mm) x 60 mm |
50 mm |
(W + 10 mm) x (H = 60 mm) |
|
2 SLOTS |
117 mm |
(W + 10 mm) x 95 mm |
50 mm |
(W + 10 mm) x (H = 95 mm) |
|

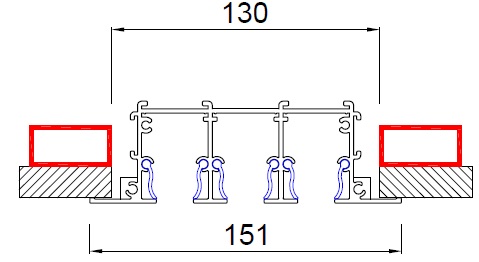

3 SLOTS |
151 mm |
(W + 10 mm) x 130 mm |
50 mm |
(W + 10 mm) x (H = 130 mm) |
|

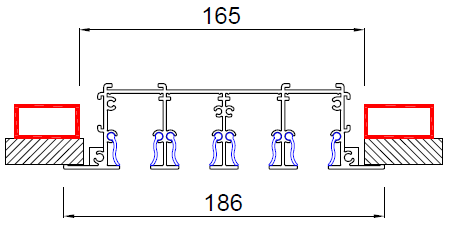

4 SLOTS |
186 mm |
(W + 10 mm) x 165 mm |
50 mm |
(W + 10 mm) x (H = 165 mm) |
|
|
|
|
1 SLOT |
2 SLOTS |
|
|
|
|
3 SLOTS |
4 SLOTS |
 |
|
|
5 SLOTS |
6 SLOTS |
|
|
 |
|
|

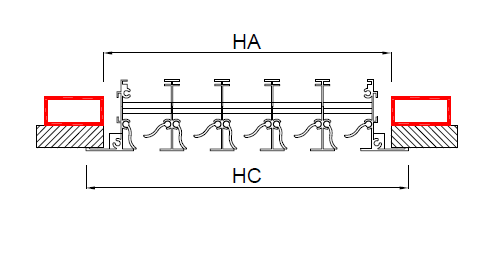

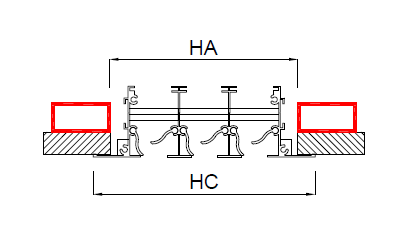

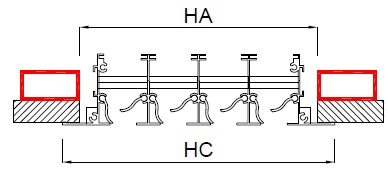

Frame (HC) |
Required Hole (WA x HA) |
Height |
Box Dimension (HA) |
|
1 SLOT (33mm with Ring) |
82 mm |
(W + 10 mm) x 60 mm |
50 mm |
(W + 10 mm) x 60 mm |
|
2 SLOTS (33mm with Ring) |
116 mm |
(W + 10 mm) x 90 mm |
50 mm |
(W + 10 mm) x 90 mm |
|
3 SLOTS (33mm with Ring) |
150 mm |
(W + 10 mm) x 125 mm |
50 mm |
(W + 10 mm) x 125 mm |
|
4 SLOTS (33mm with Ring) |
184 mm |
(W + 10 mm) x 160 mm |
50 mm |
(W + 10 mm) x 160 mm |
|
5 SLOTS (33mm with Ring) |
218 |
(W + 10 mm) x 195 mm |
50 mm |
(W + 10 mm) x 195 mm |
|
6 SLOTS (33mm with Ring) |
252 |
(W + 10 mm) x 230 mm |
50 mm |
(W + 10 mm) x 230 mm |
|
1 SLOT (35mm with Ring) |
84 |
(W + 10 mm) x 60 mm |
50 mm |
(W + 10 mm) x 60 mm |
|
2 SLOTS (35mm with Ring) |
120 |
(W + 10 mm) x 95 mm |
50 mm |
(W + 10 mm) x 95 mm |
|
3 SLOTS (35mm with Ring) |
156 |
(W + 10 mm) x 130 mm |
50 mm |
(W + 10 mm) x 130 mm |
|
4 SLOTS (35mm with Ring) |
192 |
(W + 10 mm) x 170 mm |
50 mm |
(W + 10 mm) x 170 mm |
|
5 SLOTS (35mm with Ring) |
228 |
(W + 10 mm) x 205 mm |
50 mm |
(W + 10 mm) x 205 mm |
|
6 SLOTS (35mm with Ring) |
164 |
(W + 10 mm) x 240 mm |
50 mm |
(W + 10 mm) x 240 mm |
|
1 SLOT (38mm with Ring) |
87 |
(W + 10 mm) x 65 mm |
50 mm |
(W + 10 mm) x 65 mm |
|
2 SLOTS (38mm with Ring) |
126 |
(W + 10 mm) x 100 mm |
50 mm |
(W + 10 mm) x 100 mm |
|
3 SLOTS (38mm with Ring) |
165 |
(W + 10 mm) x 140 mm |
50 mm |
(W + 10 mm) x 140 mm |
|
4 SLOTS (38mm with Ring) |
204 |
(W + 10 mm) x 180 mm |
50 mm |
(W + 10 mm) x 180 mm |
|
5 SLOTS (38mm with Ring) |
243 |
(W + 10 mm) x 220 mm |
50 mm |
(W + 10 mm) x 220 mm |
|
6 SLOTS (38mm with Ring) |
282 |
(W + 10 mm) x 260 mm |
50 mm |
(W + 10 mm) x 260 mm |
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
- X Flow rates are determined so that the air velocity in the comfort zone is between 0.10-0.20.
- X Noise intensities of the equipment for the specified flow rates are between 15-30 dB.
- X Min flow rates are for direct down blowing, max flow rates are the air flow rates that can be selected if the blades are directed into the space.
- X Selections are for 1 meter slot.
|
CEILING HEIGHT |
MIN FLOW |
MAX FLOW |
||||||
|
1 Slot |
2 Slots |
3 Slots |
4 Slots |
1 Slot |
2 Slots |
3 Slots |
4 Slots |
|
|
3.2 meters |
95 |
125 |
160 |
200 |
160 |
220 |
290 |
340 |
|
3.6 meters |
105 |
130 |
170 |
205 |
170 |
230 |
300 |
360 |
|
4.9 meters |
130 |
170 |
240 |
280 |
210 |
280 |
360 |
400 |
|
CEILING HEIGHT |
MINIMUM PRESSURE DROP VALUE |
MAX PRESSURE DROP VALUE |
||||||
|
1 Slot |
2 Slots |
3 Slots |
4 Slots |
1 Slot |
2 Slots |
3 Slots |
4 Slots |
|
|
3.2 meters |
4.3 Pa |
1.8 Pa |
1.8 Pa |
1.7 Pa |
11.8 Pa |
5.9 Pa |
5.4 Pa |
3.0 Pa |
|
3.6 meters |
4.6 Pa |
2.5 Pa |
2.2 Pa |
1.8 Pa |
12.8 Pa |
6.9 Pa |
5.9 Pa |
4.1 Pa |
|
4.9 meters |
8.8 Pa |
3.7 Pa |
3.4 Pa |
2.9 Pa |
27.5 Pa |
9.8 Pa |
6.6 Pa |
5.8 Pa |
|
For values outside the above-mentioned bedi range, the noise intensity and pressure drop values are as follows. |
|
|
NOISE VIOLENCE |
PRESSURE DROP VALUE |
|
1 SLOT - 240- 335 for flow rate value between |
30 db to 40 db |
35 Pa to 57 Pa |
|
2 SLOT - 360 - 560 for flow rate value between |
30 db to 40 db |
25 Pa to 40 Pa |
|
3 SLOT - 440 - 670 for flow rate value between |
30 db to 40 db |
14 Pa to 30 Pa |
|
4 SLOT - 580 - 890 for flow rate value between |
30 db to 40 db |
14 Pa to 30 Pa |
Mounting Options / Hole Sizes
| Mounting Method | Hole Size |
| Koprulu | Standard |
| Screw | Optional |
Accessories
- X Sled
- X Winged
- X Tipper
