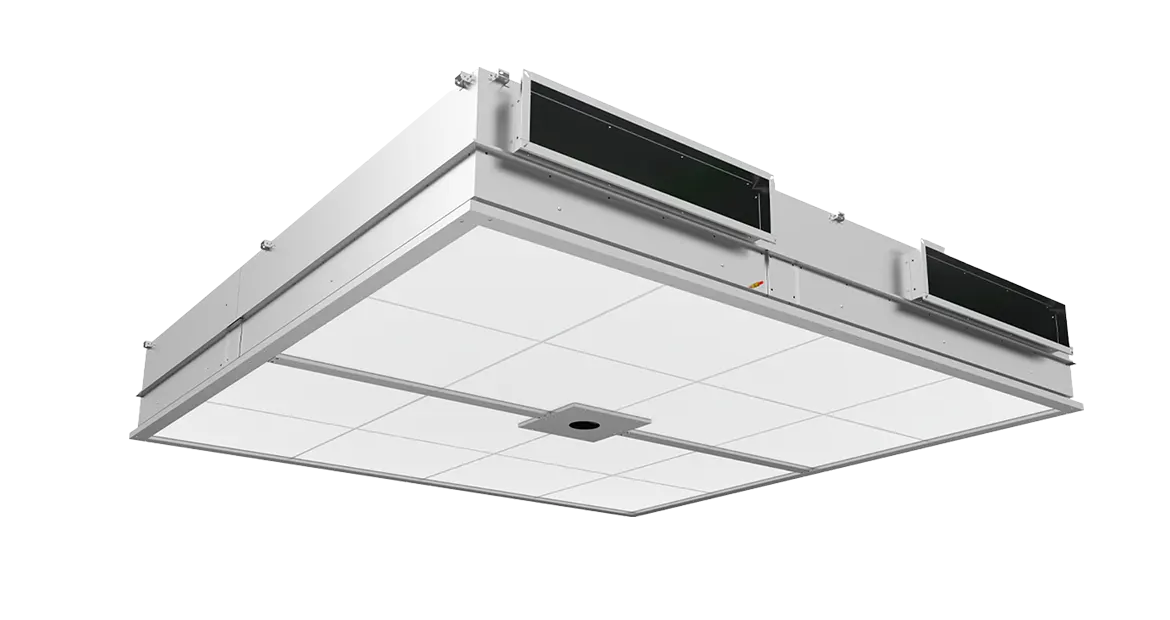

Laminar Flow Unit
Laminar Flow Unit is ideal for use in hygienic areas such as sterile rooms, operating rooms, intensive care units and clean rooms. It can be produced with duct filter or surface filter options specific to the projects. This unit has been tested according to DIN 1946/4 standards and is offered with a 100% leakage guarantee. The unit has differential pressure measurement tips for monitoring filter contamination, allowing users to easily monitor the condition of the filters. The box structure is highly resistant to disinfection processes and offers a safe and effective use in hygienic areas.
General Features
- X Laminar Flow Unit is used in hygienic areas such as sterile rooms, operating rooms, intensive care units, clean rooms.
- X Project-specific channel filtered or surface filtered production can be realized.
- X The Laminar Flow Unit is fully tested according to DIN 1946/4 and is available with a 100% leak-free guarantee.
- X It has differential pressure measurement tips for measuring filter contamination.
- X The inside of the box is resistant to disinfection processes.
Material
- STANDARD:
- X 304 Quality Stainless Steel Sheet
- OPTIONAL:
- X 316 Quality Stainless Steel Sheet
Safe Box Types / Selection Table
Laminar Flow Unit with Ducted Filter (Type 1)
Note: 305 x 610 292 Hepa Filter is used.
|
W (mm) |
H (mm) |
L (mm) |
A x B (mm x mm) |
Number of Filters |
Flow Rate (m3/h) |
Initial Pressure Loss |
Final Pressure Loss |
|
1200 |
2400 |
450 |
586 x 281 |
2 |
2400 |
120 Pa |
600 Pa |
|
1400 |
2400 |
450 |
586 x 281 |
2 |
2800 |
150 Pa |
600 Pa |
|
1600 |
2400 |
450 |
586 x 281 |
4 |
3200 |
110 Pa |
600 Pa |
|
1800 |
2400 |
450 |
586 x 281 |
4 |
3600 |
130 Pa |
600 Pa |
|
2000 |
2400 |
450 |
586 x 281 |
4 |
4000 |
120 Pa |
600 Pa |
|
2200 |
2400 |
450 |
586 x 281 |
4 |
4400 |
130 Pa |
600 Pa |
|
2400 |
2400 |
450 |
586 x 281 |
4 |
4800 |
150 Pa |
600 Pa |
Safe Box Types / Selection Table
Laminar Flow Unit with Surface Filter (Type 2)
|
W (mm) |
L (mm) |
H (mm) |
A (mm) |
B (mm) |
Air Flow Rate (m3/h) |
Initial Pressure Loss |
Filter Qty - Size |
|
1400 |
2400 |
450 |
600 |
200 |
2800 |
90 |
850x465x80 / 2 - Piece 720x350x80 / 6 - Piece |
|
1600 |
2400 |
450 |
600 |
200 |
3200 |
90 |
850x465x80 / 2 - Piece 720x450x80 / 6 - Piece |
|
1800 |
2400 |
450 |
600 |
200 |
3600 |
90 |
850x465x80 / 2 - Piece 720x550x80 / 6 - Piece |
|
2400 |
2400 |
450 |
600 |
200 |
4800 |
95 |
804x530x80 / 10 Pieces |
|
2400 |
3000 |
450 |
600 |
200 |
6000 |
95 |
1104x530x80 / 2 - Piece 804x530x80 / 10 - Qty |
|
3000 |
3000 |
450 |
900 |
200 |
7500 |
95 |
1092x532x80 / 12 Pieces |
|
3200 |
3200 |
450 |
1000 |
200 |
8500 |
95 |
1192x565x80 / 12 Pieces |
Surface Coating
- X Unpainted manufacturing
