Corner Type Displacement Diffuser
The Semi-Circular Displacement Diffuser provides effective air distribution by blowing air through the neighborhood at 180 degrees horizontal angle and constant speed. This makes it ideal for spaces that require airflow directed to specific areas. Rubber gasketed duct connection provides easy installation and sealing thanks to its compatibility with Spiro system ducts. A column valve can be added to the throat of the diffuser to adjust the air flow rate according to the needs. Its decorative design makes it ideal for use in spaces where an aesthetic appearance is sought, thus offering both functional and visual harmony.
General Features
- X The Semi-Circular Displacement Diffuser allows the blowing air to spread through the neighborhood at a horizontal and constant speed of 180 degrees.
- X Duct connection with rubber gasket. Compatible with Spiro system ducts.
- X In order to adjust the air flow rate, a column valve can be placed at the throat.
- X Thanks to its decorative appearance, it can be easily used in places where aesthetic appearance is desired.
Material
- STANDARD: Galvanized sheet production
- OPTIONAL: 304 quality stainless steel sheet

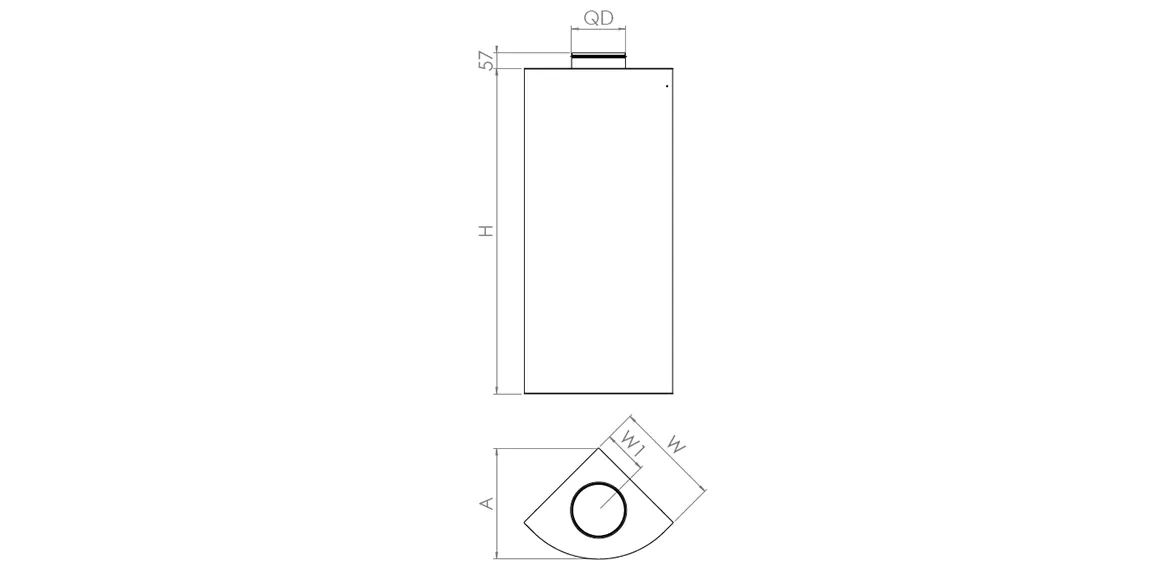

Case Types / Dimensioning
Weights may vary.
MODEL | W | W1 | H | ØD | A |
Ø125 | 280 | 108 | 600 | 124 | 295 |
Ø200 | 390 | 163 | 1200 | 199 | 410 |
Ø250 | 440 | 180 | 1200 | 249 | 460 |
Ø315 | 515 | 214 | 1600 | 314 | 540 |
Ø400 | 620 | 262 | 2000 | 399 | 650 |
Ø500 | 750 | 325 | 2000 | 499 | 790 |
Ø630 | 900 | 375 | 2000 | 629 | 945 |
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
|
MODEL |
Bosphorus Air Speed (m/s) |
Debi (m3/h) |
Pressure Loss (Pa) |
Sound Pressure dB(A) |
|
Ø125 |
3,5 |
155 |
5 |
< 20 |
|
4 |
177 |
6 |
< 20 |
|
|
5 |
221 |
9 |
20 |
|
|
6 |
265 |
13 |
25 |
|
|
Ø200 |
3,5 |
395 |
5 |
< 20 |
|
4 |
452 |
6 |
< 20 |
|
|
5 |
565 |
10 |
23 |
|
|
6 |
678 |
14 |
29 |
|
|
Ø250 |
3,5 |
619 |
6 |
< 20 |
|
4 |
707 |
8 |
< 20 |
|
|
5 |
884 |
12 |
23 |
|
|
6 |
1060 |
17 |
28 |
|
|
Ø315 |
3 |
842 |
5 |
< 20 |
|
4 |
1122 |
9 |
< 20 |
|
|
5 |
1403 |
13 |
24 |
|
|
Ø400 |
3 |
1357 |
6 |
< 20 |
|
4 |
1809 |
11 |
< 20 |
|
|
5 |
2262 |
17 |
27 |
|
|
Ø500 |
3 |
2121 |
9 |
< 20 |
|
4 |
2827 |
15 |
23 |
|
|
5 |
3534 |
24 |
31 |
|
|
Ø630 |
3 |
3367 |
13 |
20 |
|
4 |
4489 |
23 |
29 |
|
|
5 |
5611 |
35 |
38 |
Mounting Method
- X Channel Connection
Accessories
- X Damper
