Duct Type Electric Heater
Channel-Type Electric Heater is manufactured in compliance with European standards, bearing the CE mark. These devices comply with TS 2000 (EN 60335-1) and TS 10316 (EN 60204-1) standards and meet the requirements of European Directives EMC 89/336 and LVD 72/723. They can be manufactured in the desired standard spiral channel dimensions, with single-phase, two-phase, or three-phase options. They can be designed in steps or proportionally according to customer needs. The device has a double over-temperature cut-off circuit for safety and can be optionally equipped with a differential pressure switch. Produced as standard in IP 43 class, these heaters can also be manufactured in different IP classes upon request, ensuring suitability for various application conditions.
General Features
- X It has the CE mark.
- X Electric heating devices are manufactured in compliance with TS 2000 (EN 60335-1) and TS 10316 (EN 60204-1) standards and in accordance with the requirements of European Directives EMC 89/336 and LVD 72/723.
- X Available in the desired standard spiral duct dimensions; can be manufactured as single-phase, two-phase, or three-phase.
- X It can be designed in a stepwise or proportional manner according to customer needs.
- X It has a dual over-temperature cut-off circuit. An optional differential pressure switch can be added.
- X Production is carried out according to IP 43 class as standard. Production is also available in different IP classes upon request.
Material
- STANDARD:
- X Frame Galvanized
- X Resistance: Stainless
- OPTIONAL X
- X Case Stainless
- X Resistance: Stainless
Case Types / Dimensioning
Prismatic Electric Heater
|
W |
200 mm … 2000 mm |
H |
200 mm … 1500 mm |

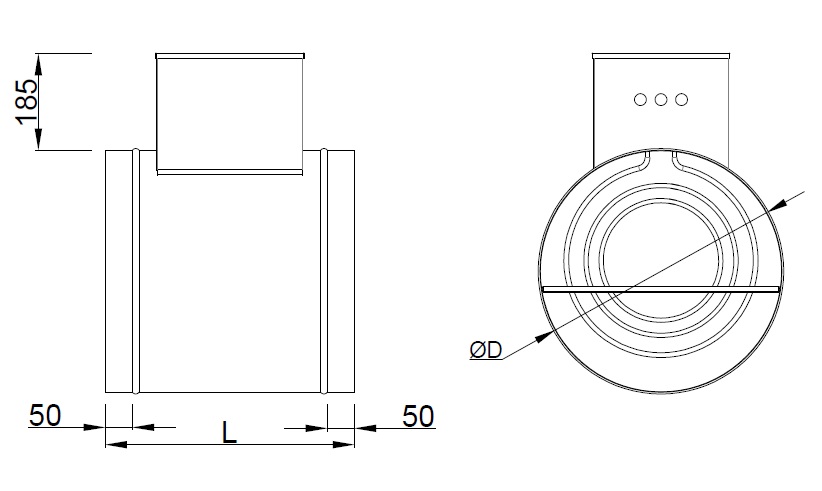

Circular Electric Heater
|
MODEL |
XDE 125 |
XDE 150 |
XDE 160 |
XDE 200 |
XDE 250 |
XDE 315 |
XDE 355 |
XDE 400 |
XDE 450 |
|
ØD (mm) |
123 |
148 |
158 |
198 |
248 |
313 |
353 |
398 |
448 |
|
L (mm) |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
Assembly Detail

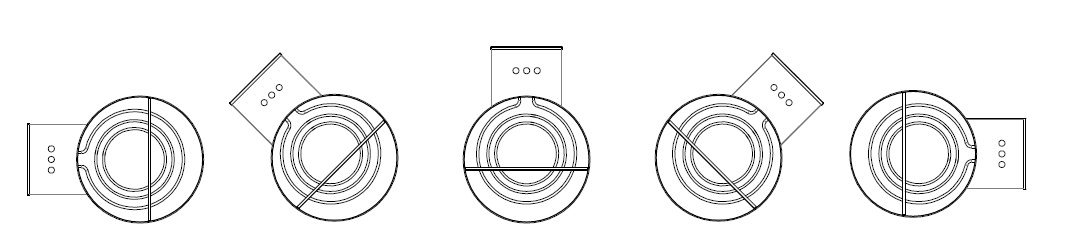

Correct Installation

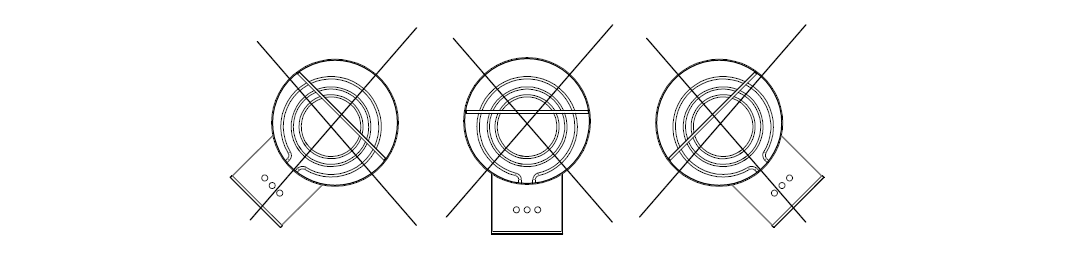

Improper Installation
When installing electric heaters in ducts, there must be a minimum distance of twice the diameter of the circular electric heater between the elbow, damper, fan, tee, adapter, and other equipment. This ensures a homogeneous air distribution over the resistors.
Election Table
|
Heater Power (Watt) |
|
|
P = Q x 0.36 x (T2-T1) |
|
|
P = Heater Power (Watts) |
Q = Air Flow Rate (m³/h) |
|
T1 = Inlet Temperature |
T2 = Outlet Temperature |
|
Capacity |
|
|
Capacity Range |
Electrical Connection |
||
|
0.5 – 2.0 |
KW |
220 V |
1 FAZ |
|
3.0 – … |
KW |
380 V |
3 FAZ |
|
Note: Maximum 30 kW for Circular Heaters |
|||
|
Selection Criteria |
|
The air velocity inside the duct should not be less than 1.5 m/s. |
|
The air velocity inside the duct should not exceed 8.0 m/s. |
|
The maximum heater capacity for 220 volts is 2.0 kW. |
|
The operating voltage for heaters above 2.0 kW is 380 volts. |
|
The cable cross-section to be connected to the heater varies depending on the heater's capacity. |
Pressure Loss Calculation
Quick Selection for Circular Heaters
|
Channel Measurement |
Kw |
Step |
Volt |
Phase |
Number of Tighs (Resistance) |
Minimum Flow Rate (m³/h) |
Max Flow Rate (m³/h) |
|
125 |
0,5 |
1 |
220 |
|
1 |
60 |
318 |
|
125 |
1 |
1 |
220 |
|
2 |
60 |
318 |
|
125 |
2 |
1 |
220 |
|
4 |
60 |
318 |
|
125 |
2 |
2 |
220 |
|
4 |
60 |
318 |
|
150 |
3 |
1 |
380 |
3 |
3 |
86 |
458 |
|
160 |
4,5 |
1 |
380 |
3 |
3 |
98 |
521 |
|
160 |
4,5 |
3 |
380 |
3 |
6 |
98 |
521 |
|
200 |
4,5 |
1 |
380 |
3 |
3 |
153 |
814 |
|
200 |
4,5 |
3 |
380 |
3 |
6 |
153 |
814 |
|
200 |
6 |
2 |
380 |
3 |
6 |
153 |
814 |
|
250 |
4,5 |
1 |
380 |
3 |
3 |
238 |
1272 |
|
250 |
6 |
2 |
380 |
3 |
6 |
238 |
1272 |
|
250 |
9 |
3 |
380 |
3 |
6 |
238 |
1272 |
|
250 |
12 |
3 |
380 |
3 |
9 |
238 |
1272 |
|
315 |
4,5 |
1 |
380 |
3 |
3 |
379 |
2019 |
|
315 |
6 |
2 |
380 |
3 |
4 |
379 |
2019 |
|
315 |
9 |
3 |
380 |
3 |
6 |
379 |
2019 |
|
315 |
12 |
3 |
380 |
3 |
6 |
379 |
2019 |
|
315 |
15 |
3 |
380 |
3 |
9 |
379 |
2019 |
|
355 |
4,5 |
1 |
380 |
3 |
3 |
481 |
2564 |
|
355 |
6 |
2 |
380 |
3 |
4 |
481 |
2564 |
|
355 |
9 |
3 |
380 |
3 |
6 |
481 |
2564 |
|
355 |
12 |
3 |
380 |
3 |
6 |
481 |
2564 |
|
355 |
15 |
3 |
380 |
3 |
9 |
481 |
2564 |
|
355 |
18 |
3 |
380 |
3 |
9 |
481 |
2564 |
|
400 |
4,5 |
1 |
380 |
3 |
3 |
610 |
3256 |
|
400 |
6 |
2 |
380 |
3 |
3 |
610 |
3256 |
|
400 |
9 |
3 |
380 |
3 |
6 |
610 |
3256 |
|
400 |
12 |
3 |
380 |
3 |
6 |
610 |
3256 |
|
400 |
15 |
3 |
380 |
3 |
9 |
610 |
3256 |
|
400 |
18 |
3 |
380 |
3 |
9 |
610 |
3256 |
|
450 |
4,5 |
1 |
380 |
3 |
3 |
773 |
4120 |
|
450 |
6 |
2 |
380 |
3 |
4 |
773 |
4120 |
|
450 |
9 |
3 |
380 |
3 |
6 |
773 |
4120 |
|
450 |
12 |
3 |
380 |
3 |
6 |
773 |
4120 |
|
450 |
15 |
3 |
380 |
3 |
6 |
773 |
4120 |
|
450 |
18 |
3 |
380 |
3 |
9 |
773 |
4120 |
