Heat Recovery Device with Heat Pump
This device is a high efficiency heat recovery device used in many areas such as homes, offices, hotels, business centers, schools, showrooms, shops, banks and tourism facilities. Using standard AC fans, this system, which can optionally be supported with an EC fan option, blows fresh air into the environment by cooling or heating it in accordance with the climatic conditions. Although it is not a stand-alone conditioning system, it is designed to lighten the load of existing air conditioning systems and does not require outdoor unit connection. The device includes evaporator, condenser and compressor systems and uses aluminum plate heat exchanger for thermal efficiency. It has a standard G4 filter and offers higher level filtration options such as F7 and Hepa filters. It can be optionally equipped with water or electric heaters, silencers and CO2 sensors, allowing it to be customized to the area of use and increase efficiency.
General Features
- X Areas of use; Houses, Offices, Hotels, Business Centers, Schools, Showrooms, Shops, Banks, Tourism Facilities etc.
- X High efficiency plug fans and standard AC fans are used. EC fan can be used optionally.
- X It blows fresh air into the neighborhood by cooling or heating it according to climatic conditions.
- X They are compact devices that do not require outdoor unit connection and are used to reduce the load of the existing air conditioning system.
- X The device includes evaporator, condenser and compressor system.
- X Aluminum plate heat exchanger is used for thermal efficiency.
- X Standard G4 filter is used, optionally F7, Hepa filter can be used.
- X Optionally, water or electric heater is used.
- X Optional silencer is available.
- X Optional CO2 sensor is used.

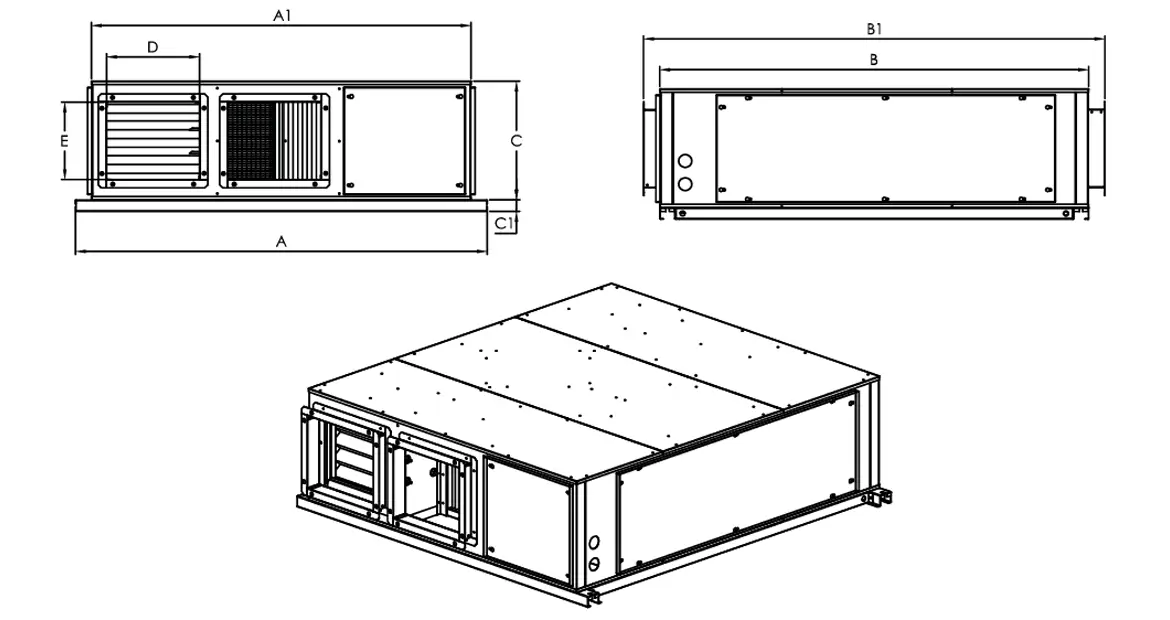

Case Types / Dimensioning
| Model | A (mm) | A1 (mm) | B (mm) | B1 (mm) | C (mm) | D (mm) | E (mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|
| X-IGK H07 | 1279 | 1175 | 1354 | 1488 | 384 | 280 | 210 | 150 |
| X-IGK H10 | 1329 | 1125 | 1454 | 1558 | 384 | 300 | 210 | 175 |
| X-IGK H15 | 1545 | 1445 | 1559 | 1663 | 435 | 400 | 310 | 200 |
| X-IGK H20 | 1605 | 1505 | 1699 | 1803 | 499 | 410 | 410 | 250 |
| X-IGK H30 | 1765 | 1665 | 1884 | 1987 | 602 | 510 | 510 | 300 |
| X-IGK H40 | 2125 | 2025 | 1919 | 2024 | 666 | 600 | 510 | 375 |
Technical Details
IGK-H Capacity Ratings with AC Fan
| Model | Air Flow (m³/h) | Out of Device Pressure (Pa) | Cooling Capacity (Kw) | Heating Capacity (Kw) |
|---|---|---|---|---|
| X-IGK H07 | 750 | 100 | 4,1 | 5,5 |
| X-IGK H10 | 1000 | 75 | 5,42 | 6,0 |
| X-IGK H15 | 1500 | 180 | 8,5 | 10,8 |
| X-IGK H20 | 2000 | 50 | 11,7 | 15,7 |
| X-IGK H30 | 3000 | 50 | 14,9 | 19,4 |
| X-IGK H40 | 4000 | 75 | 18,2 | 25,8 |
IGK-H Capacity Ratings with EC Fan
| Model | Air Flow (m³/h) | Out of Device Pressure (Pa) | Cooling Capacity (Kw) | Heating Capacity (Kw) |
|---|---|---|---|---|
| X-IGK H07 | 750 | 100 | 4,1 | 5,5 |
| X-IGK H10 | 1000 | 300 | 5,42 | 6,0 |
| X-IGK H15 | 1500 | 200 | 8,5 | 10,8 |
| X-IGK H20 | 2000 | 250 | 11,7 | 15,7 |
| X-IGK H30 | 3000 | 200 | 14,9 | 19,4 |
| X-IGK H40 | 4000 | 200 | 18,2 | 25,8 |
