Wall Mounted Displacement Diffuser
Wall-Mounted Displacement Diffuser provides a comfortable airflow by distributing the supply air at a low and constant speed throughout the room. Its ability to be mounted both at ceiling level and on the floor offers flexible usage. The removable front panel allows for easy cleaning of the diffuser's interior. The duct connection is rubber-sealed, ensuring compatibility with Spiro system ducts. Depending on customer preference, the airflow can be directed in 1 or 3 directions, providing a solution suitable for different space requirements.
General Features
- X The Wall-Mounted Displacement Diffuser ensures that the airflow is distributed throughout the room at a low and constant speed.
- X Can be mounted on the ceiling or floor.
- X The front panel is removable. This allows for cleaning the interior.
- X Duct connection with rubber gasket. Compatible with Spiro system ducts.
- X Blowing can be done in 1 or 3 directions according to customer preference.
Material
- STANDARD: Galvanized sheet production
- OPTIONAL: 304 quality stainless steel sheet
Case Types / Dimensioning

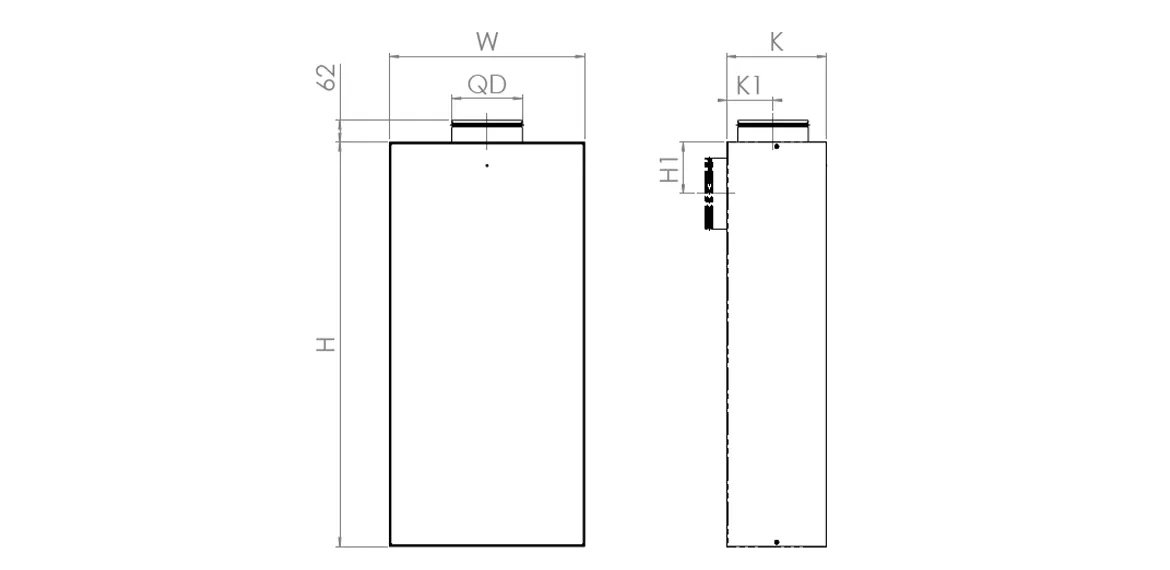

MODEL | W | H | H1 | K | K1 | ØD |
Ø125 | 550 | 540 | 125 | 240 | 110 | 124 |
Ø160 | 550 | 540 | 125 | 240 | 110 | 159 |
Ø200 | 550 | 1140 | 145 | 280 | 130 | 199 |
Ø250 | 660 | 1350 | 170 | 330 | 155 | 249 |
Ø315 | 830 | 1600 | 200 | 400 | 188 | 314 |
Ø400 | 950 | 2000 | 245 | 480 | 230 | 399 |
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
MODEL | Bosphorus Air Speed (m/s) | Debi (m3/h) | Pressure Loss (Pa) | Sound Pressure dB(A) |
Ø125 | 2,5 | 110 | 3 | < 20 |
3 | 132 | 4 | < 20 | |
3,5 | 154 | 6 | < 20 | |
4 | 176 | 7 | < 20 | |
5 | 220 | 11 | < 20 | |
Ø160 | 3 | 217 | 6 | < 20 |
3,5 | 254 | 8 | < 20 | |
4 | 290 | 11 | < 20 | |
5 | 362 | 17 | 23 | |
Ø200 | 3 | 339 | 5 | < 20 |
3,5 | 396 | 7 | < 20 | |
4 | 452 | 9 | < 20 | |
5 | 565 | 14 | 25 | |
Ø250 | 3 | 530 | 5 | < 20 |
3,5 | 619 | 7 | < 20 | |
4 | 707 | 9 | 20 | |
5 | 883 | 13 | 27 | |
Ø315 | 3 | 842 | 5 | < 20 |
4 | 1122 | 9 | 22 | |
5 | 1402 | 14 | 28 | |
Ø400 | 3 | 1357 | 7 | < 20 |
4 | 1809 | 12 | 23 | |
5 | 2261 | 19 | 31 |

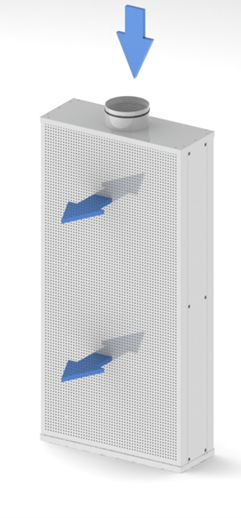

Single-Direction Blowing
Three-Way Blowing
Mounting Method
- X Channel Connection
Accessories
- X Damper
