Drum Diffuser
The Drum Diffuser is an ideal solution for long-range air distribution. Its adjustable blades and rotating body facilitate the direction of conditioned air to hard-to-reach areas within a space. These features ensure efficient air distribution in high-ceilinged spaces such as sports complexes, theaters, and factory production areas, making the Drum Diffuser particularly suitable for such environments.
General Features
- X Used for long-range shooting.
- X With its adjustable blades and rotating body, it can direct conditioned airflow to hard-to-reach areas within the space.
- X Can be used in high-ceilinged areas such as sports complexes, theaters, and factory production areas.
Material
- STANDARD: Production from aluminum profile
- OPTIONAL X

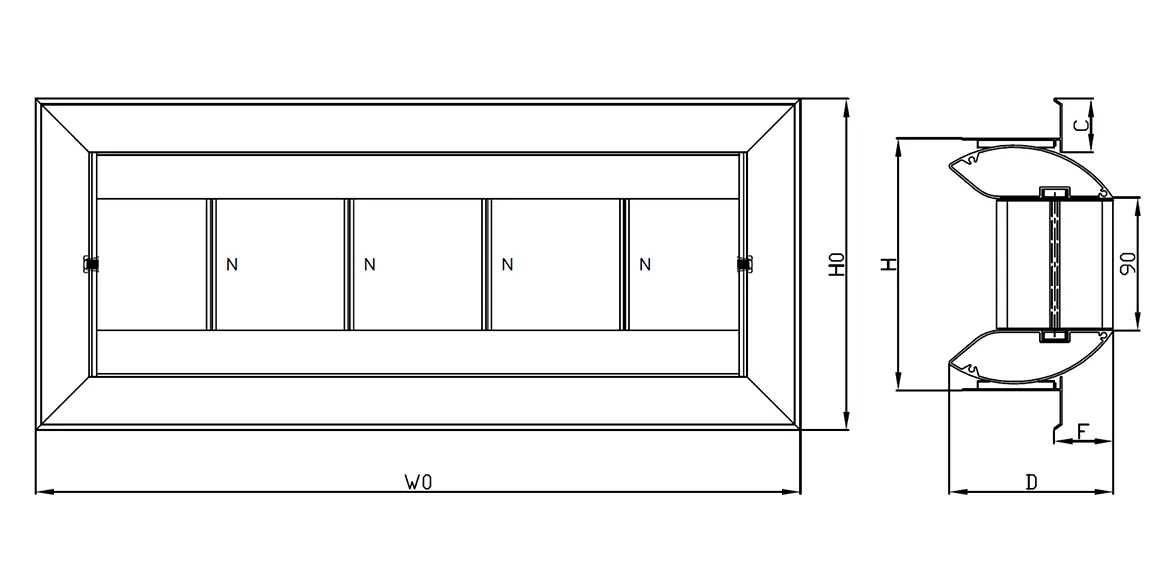

Case Types / Dimensioning
|
SIZE |
W0 |
W |
H0 |
H |
D |
F |
C |
N |
|
250 x 165 |
332 |
250 |
217 |
165 |
107 |
40 |
35 |
2 |
|
300 x 165 |
370 |
300 |
217 |
165 |
107 |
40 |
35 |
3 |
|
475 x 165 |
545 |
475 |
217 |
165 |
107 |
40 |
35 |
5 |
|
625 x 165 |
695 |
625 |
217 |
165 |
107 |
40 |
35 |
7 |
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
|
|
||||||||||||||
|
Measure |
Arrival Speed (m/s) |
0,1 |
0,2 |
0,3 |
0,4 |
0,5 |
0,6 |
0,7 |
0,8 |
1,0 |
1,2 |
1,5 |
2,0 |
2,5 |
|
Flow rate (m3/h) |
||||||||||||||
|
250×160
|
500 |
24,1 |
10,6 |
6,4 |
4,6 |
3,6 |
2,9 |
|
|
|
|
|
|
|
|
600 |
32,9 |
14,8 |
9,0 |
6,3 |
4,9 |
4,0 |
3,5 |
2,7 |
|
|
|
|
|
|
|
700 |
41,7 |
18,9 |
11,5 |
8,2 |
6, 3 |
5,1 |
4,4 |
3,7 |
2,6 |
|
|
|
|
|
|
800 |
53,9 |
25,2 |
15,1 |
10,6 |
8,3 |
6,6 |
5,9 |
4,8 |
3,7 |
3,0 |
|
|
|
|
|
900 |
>55 |
30,1 |
18,5 |
13,1 |
9,8 |
8,2 |
6,8 |
5,9 |
4,5 |
3,7 |
2,5 |
|
|
|
|
1000 |
>55 |
38,0 |
23,3 |
16,3 |
12,7 |
10,0 |
8,6 |
7,2 |
5,7 |
4,5 |
3,4 |
2,2 |
|
|
|
1200 |
>55 |
52,1 |
32,6 |
23,5 |
18,1 |
14,6 |
12,5 |
10,4 |
8,0 |
6,44 |
4,87 |
3,5 |
2,6 |
|
|
1500 |
>55 |
>55 |
47,0 |
34,0 |
26,6 |
21,7 |
18,0 |
15,1 |
11,7 |
9,4 |
7,0 |
5,0 |
3,9 |
|
|
300 x 165 |
600 |
20,7 |
9,4 |
5,7 |
4,1 |
3,1 |
2,5 |
|
|
|
|
|
|
|
|
700 |
28,1 |
12,7 |
7,8 |
5,5 |
4,3 |
3,5 |
3,0 |
2,5 |
|
|
|
|
|
|
|
800 |
36,7 |
16,6 |
10,1 |
7,2 |
5,6 |
4,5 |
3,9 |
3,2 |
2,4 |
|
|
|
|
|
|
900 |
43,7 |
19,8 |
12,1 |
8,6 |
6,6 |
5,4 |
4,6 |
3,8 |
2,9 |
|
|
|
|
|
|
1000 |
52,1 |
23,6 |
14,4 |
10,2 |
7,9 |
6,4 |
5,5 |
4,6 |
3,5 |
2,8 |
|
|
|
|
|
1200 |
>55 |
34,0 |
20,8 |
14,8 |
11,4 |
9,2 |
7,9 |
6,6 |
5,0 |
4,0 |
3,0 |
2,1 |
|
|
|
1500 |
>55 |
50,5 |
30,8 |
21,9 |
17,0 |
13,7 |
11,8 |
9,8 |
7,4 |
6,0 |
4,4 |
3,1 |
2,3 |
|
|
2000 |
>55 |
>55 |
51,2 |
36,4 |
28,2 |
22,8 |
19,6 |
16,2 |
12,3 |
9,9 |
7,3 |
5,2 |
4,3 |
|
|
475 x 165 |
700 |
18,5 |
8,4 |
5,1 |
3,6 |
2,8 |
2,3 |
|
|
|
|
|
|
|
|
800 |
20,6 |
9,3 |
5,7 |
4,0 |
3,1 |
2,5 |
|
|
|
|
|
|
|
|
|
900 |
28,8 |
13,0 |
8,0 |
5,7 |
4,4 |
3,5 |
3,0 |
2,5 |
|
|
|
|
|
|
|
1000 |
34,7 |
15,7 |
9,6 |
6,8 |
5,3 |
4,3 |
3,7 |
3,0 |
2,3 |
|
|
|
|
|
|
1200 |
48,3 |
21,9 |
13,3 |
9,5 |
7,3 |
5,9 |
5,1 |
4,2 |
3,2 |
2, 6 |
|
|
|
|
|
1500 |
>55 |
33,0 |
20,1 |
14,3 |
11,1 |
9,0 |
7,7 |
6,4 |
4,9 |
3,9 |
2,9 |
|
|
|
|
2000 |
>55 |
53,1 |
32,4 |
23,0 |
17,8 |
14,4 |
12,4 |
10,3 |
7,8 |
6,3 |
4,6 |
3,3 |
2,6 |
|
|
2500 |
>55 |
>55 |
49,7 |
35,3 |
27,3 |
22,1 |
19,0 |
15,7 |
12,0 |
9,7 |
7,1 |
5,1 |
4,2 |
|
|
625 x 165 |
900 |
18,9 |
8,6 |
5,2 |
3,7 |
2,9 |
|
|
|
|
|
|
|
|
|
1000 |
23,4 |
10,6 |
6,5 |
4,6 |
3,6 |
2,9 |
|
|
|
|
|
|
|
|
|
1200 |
34,7 |
15,7 |
9,6 |
6,8 |
5,3 |
4,3 |
3,7 |
3,0 |
2,3 |
|
|
|
|
|
|
1500 |
41,6 |
18,8 |
11,5 |
8,2 |
6,3 |
5,1 |
4,4 |
3,6 |
2,8 |
|
|
|
|
|
|
2000 |
>55 |
36,9 |
22,5 |
16,0 |
12,4 |
10,0 |
8,6 |
7,1 |
5,4 |
4,4 |
3,2 |
2,3 |
|
|
|
2500 |
>55 |
54,2 |
33,1 |
23,5 |
18,2 |
14,7 |
12,6 |
10,5 |
8,0 |
6,4 |
4,7 |
3,4 |
2,6 |
|
|
3000 |
>55 |
>55 |
45,4 |
32,3 |
25,0 |
20,2 |
17,3 |
14,4 |
11,0 |
8,8 |
6,5 |
4,6 |
3,7 |
|
|
3500 |
>55 |
>55 |
>55 |
42,9 |
33,2 |
26,9 |
23,1 |
19,1 |
14,6 |
11,7 |
8,6 |
6,2 |
4,9 |
|
