Circular VAV Device

The Circular VAV Device is used in circular ducts to control air flow, especially in projects with special requirements such as comfort and hygiene. This system offers an important solution in terms of energy efficiency by saving up to 50% of the energy consumed by the fan motor. The air flow rate can be adjusted between minimum and maximum settings with a room controller with 0-10 V or 2-10 VDC analog signal. The products are calibrated according to the nominal flow rate values before shipment and sent to the customer. Duct connection with airtight rubber gaskets ensures tightness. Manufactured in accordance with EN 1946/4 and VDI 6022 hygiene standards, this device is suitable for use in both supply and exhaust lines. It withstands up to 1000 Pa pressure and operates effectively at air velocities between 28 m³/h and 5372 m³/h at ambient temperatures of 0-50°C and 95% relative humidity without condensation.

General Features

It is used in circular ducts to control airflow in projects with special requirements such as comfort and hygiene. The circular VAV system saves up to 50% of the energy consumed by the fan motor.
The air flow rate can be changed between minimum and maximum settings by a room controller with analog signal (0-10 or 2-10 VDC).
Each product is calibrated according to the nominal flow rate values before shipment and sent to the customer.
The duct connection includes airtight rubber seals.
Complies with EN 1946/4 and VDI 6022 hygiene standards.
Suitable for use in the supply and exhaust line.
Withstands up to 1000 Pa pressure. Suitable for operation at 0-50ºC ambient temperature. No condensation occurs up to 95% relative humidity. Operates at air velocities between 28 m³/h and 5372 m³/h.

Material

STANDARD: X Galvanized steel case and blade X Zinc-plated steel shaft X Plastic bushing X EPDM rubber channel seals X Neoprene blade seals X Aluminum measuring probe X Belimo Damper Motor X Plastic Sensor Tubes
OPTIONAL: X Stainless coated steel case and sash

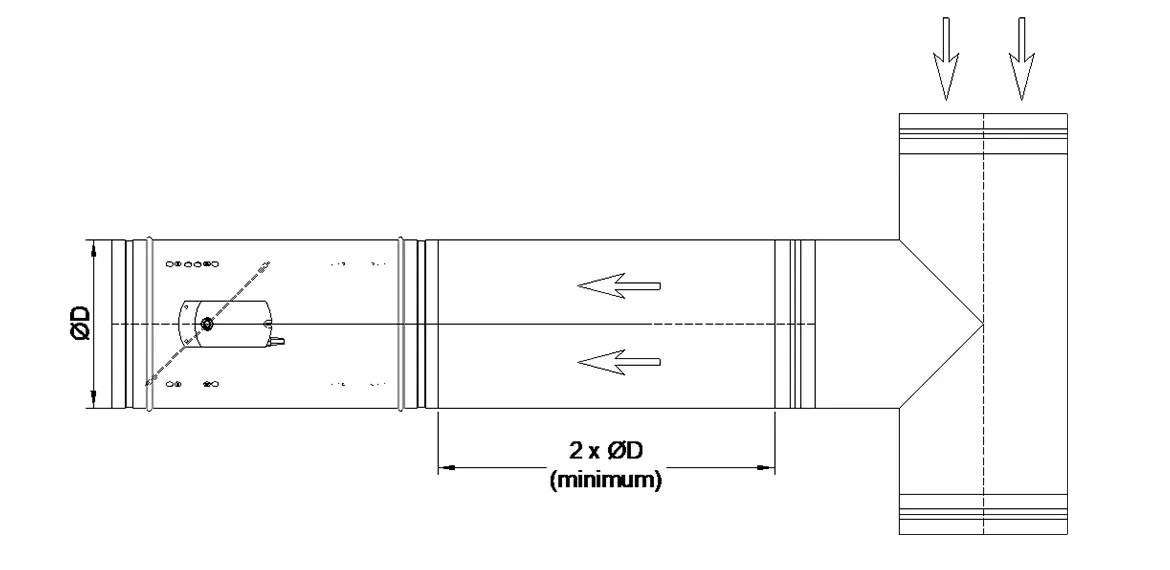

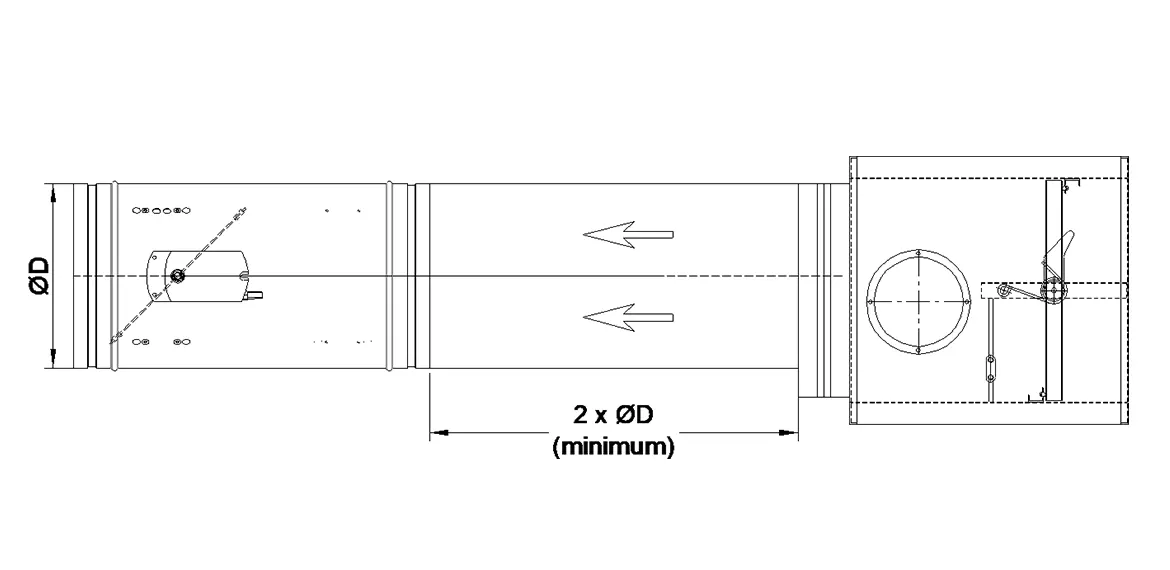

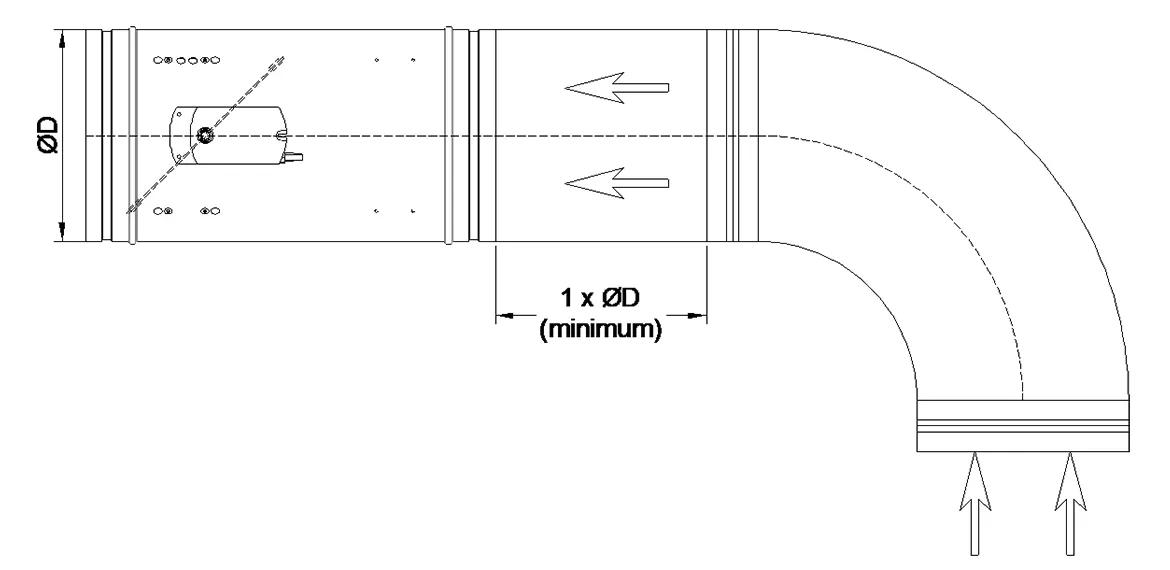

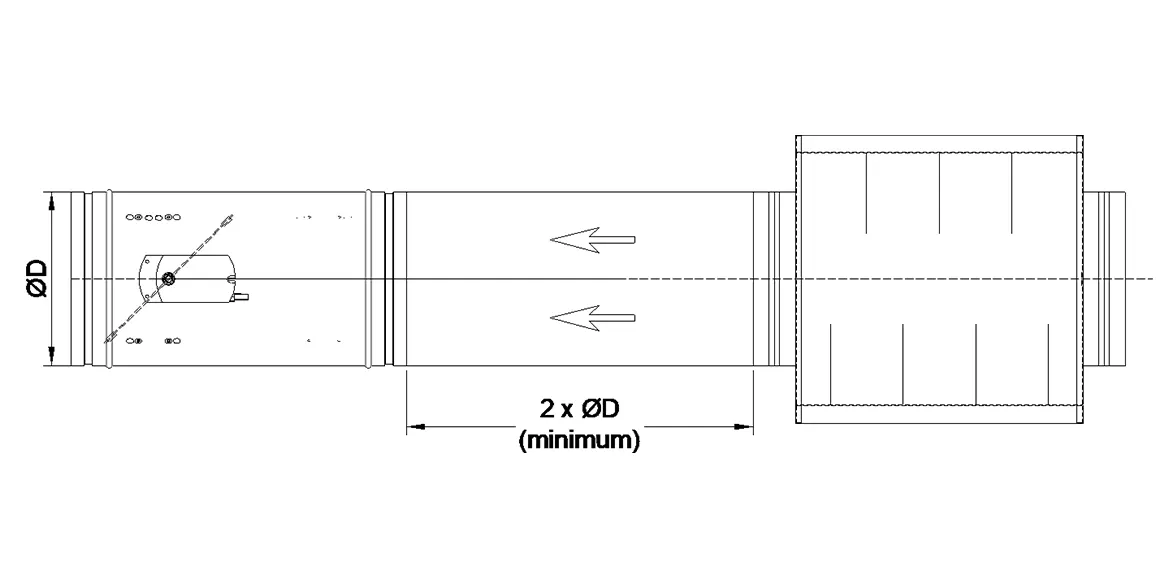

Case Types / Dimensioning

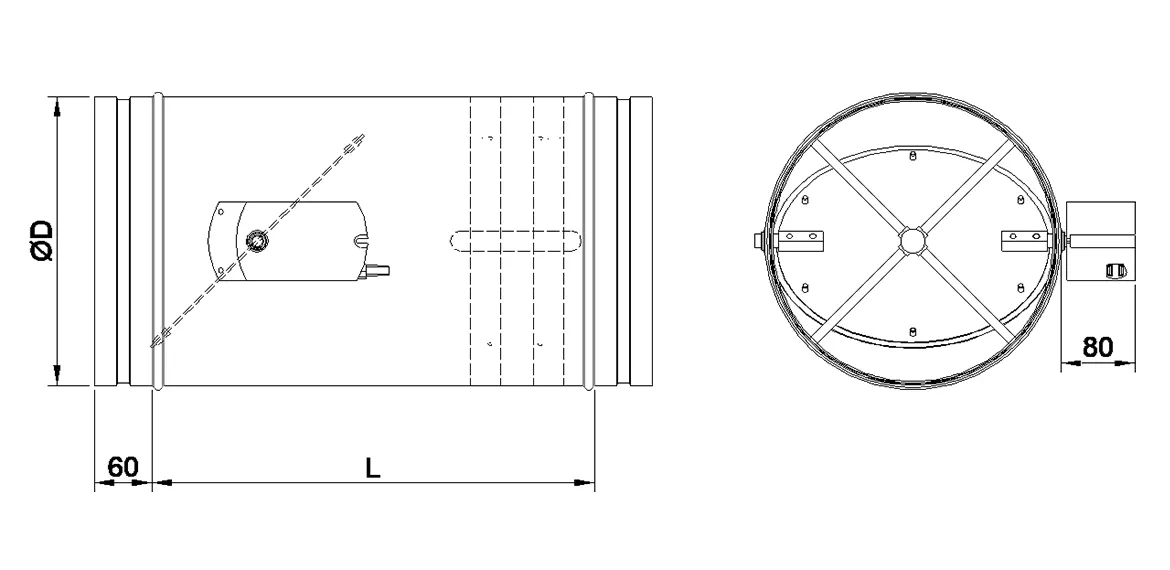

Non-Insulated Case

Insulated Case

SIZE	ØD	L	V min (m3/h)	V max (m3/h)
Ø100	95	305	28	266
Ø125	120	285	44	428
Ø160	155	390	72	705
Ø200	195	330	113	1108
Ø250	245	380	177	2086
Ø315	310	445	281	3322
Ø355	350	485	356	4226
Ø400	395	530	452	5372

Surface Coating

STANDARD: X Galvanized Case
OPTIONAL: X Insulated Outer Case

Election Table

				Flow sourced sound _LpA NR [dB]				From the body radiated sound LPR NR [dB]
Nominal Diameter ØD	Air velocity [m/s]	Air Flow Rate [^m3/h]	Pressure Loss [Pa]					Non-isolated				Insulated Safe deposit box
				100 [Pa)	200 [Pa)	400 [Pa)	800 [Pa)	100 [Pa)	200 [Pa)	400 [Pa)	800 [Pa)	100 [Pa)	200 [Pa)	400 [Pa)	800 [Pa)
				100 [Pa)	200 [Pa)	400 [Pa)	800 [Pa)	100 [Pa)	200 [Pa)	400 [Pa)	800 [Pa)	100 [Pa)	200 [Pa)	400 [Pa)	800 [Pa)
100	2	53	2	30	38	45	50	<15	20	28	32	<15	<15	<15	18
	4	106	10	34	40	47	52	<15	22	29	34	<15	<15	<15	21
	6	160	23	36	43	49	54	19	24	31	35	<15	<15	19	23
	8	213	41	39	45	51	57	21	27	33	38	<15	<15	22	27
	10	266	65	42	47	54	59	25	29	36	41	<15	18	24	30
125	2	86	2	30	38	45	50	<15	20	28	33	<15	<15	<15	20
	4	172	10	35	41	48	53	<15	23	31	36	<15	<15	18	23
	6	258	22	38	43	51	56	20	25	33	38	<15	<15	21	26
	8	344	39	41	46	53	58	24	28	35	41	<15	<15	24	29
	10	428	61	44	49	55	60	26	31	37	43	<15	19	26	31
160	2	141	2	28	40	46	52	<15	24	30	36	<15	<15	<15	20
	4	282	10	33	43	48	55	<15	26	32	38	<15	<15	17	23
	6	423	22	37	47	51	57	20	31	34	41	<15	21	22	28
	8	564	39	40	49	53	60	23	33	36	44	<15	18	24	31
	10	705	61	44	51	55	62	27	35	38	46	<15	20	26	33
200	2	222	2	29	38	44	54	<15	22	29	39	<15	<15	<15	26
	4	444	9	34	42	49	56	17	27	33	41	<15	<15	21	28
	6	666	19	38	45	51	58	22	30	36	43	<15	18	24	31
	8	888	35	41	48	54	61	25	33	38	45	<15	21	26	33
	10	1108	54	45	51	56	63	29	35	40	48	<15	23	29	35
250	2	348	2	28	37	46	52	<15	21	30	39	<15	<15	<15	26
	4	696	9	35	42	49	57	17	27	33	41	<15	<15	21	28
	6	1044	18	38	46	52	59	22	30	36	43	<15	18	24	31
	8	1392	33	41	49	54	61	25	33	38	45	<15	21	26	33
	10	1740	51	45	51	56	63	29	35	40	48	<15	23	29	35
	12	2086	53	48	53	58	64	32	36	42	48	22	28	33	39
315	2	554	2	29	37	46	52	<15	21	31	37	<15	<15	20	27
	4	1108	9	36	44	50	56	19	27	34	40	<15	19	25	31
	6	1662	17	40	47	54	59	24	31	37	43	<15	22	29	34
	8	2216	29	44	50	56	62	28	33	40	45	19	25	31	37
	10	2770	46	48	53	58	64	32	36	42	48	22	28	33	39
	12	3322	54	52	57	59	66	34	39	45	50	24	30	36	43
355	2	704	3	28	37	44	53	<15	23	31	40	<15	<15	20	29
	4	1408	14	36	45	49	56	21	30	35	43	<15	20	24	32
	6	2112	15	39	47	53	60	24	33	39	46	15	22	29	35
	8	2816	26	43	50	56	63	28	36	42	49	18	26	31	38
	10	3520	41	46	53	59	66	32	39	44	52	22	29	34	41
	12	4226	54	52	56	60	68	34	41	45	54	24	30	36	43
400	2	895	2	29	36	46	55	<15	22	34	41	<15	<15	22	31
	4	1790	10	37	44	50	57	22	30	36	43	<15	21	26	34
	6	2685	14	40	47	54	60	26	33	39	46	17	23	30	37
	8	3580	25	45	50	56	63	30	36	41	49	21	27	32	39
	10	4475	38	48	54	59	67	33	39	45	53	24	30	36	43
	12	5372	54	52	56	60	68	34	41	45	54	24	30	36	43
	12	8410	46	51	57	61	69	35	41	47	57	27	32	38	48
