Circular Sealed Damper
Circular Sealed Damper is designed to be used in circular ducted systems where complete sealing in the duct is required. This damper, which has Class 3 sealing class according to DIN EN 1751 standard, is resistant to a maximum pressure value of 1500 Pa. It shows effective performance between 10 - 50°C as working conditions. Damper blade adjustment can be done with manual lever or damper motor according to need and preference, thanks to this flexibility, it easily adapts to different system needs. With these features, the Circular Sealed Damper is an ideal option for applications requiring high sealing in air ducts.
General Features
- X It is used in circular ducted systems where complete sealing in the duct is required.
- X Class 3 sealing class according to DIN EN 1751.
- X The maximum pressure value is 1500 Pa.
- X Working conditions are between 10 - 50oC degrees.
- X Damper blade adjustment is made by manual lever or damper motor.
Material
- STANDARD:
- X Frame Galvanized
- X Wing Galvanized
- OPTIONAL:
- X Case Stainless
- X Wing Stainless
Case Types / Dimensioning

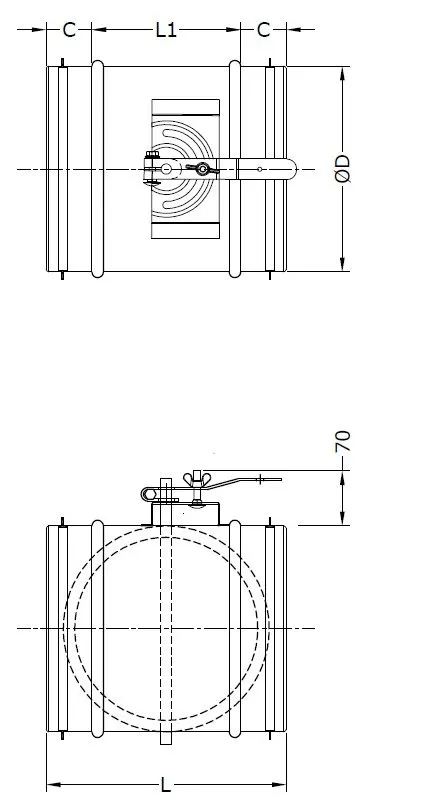

Manual Control

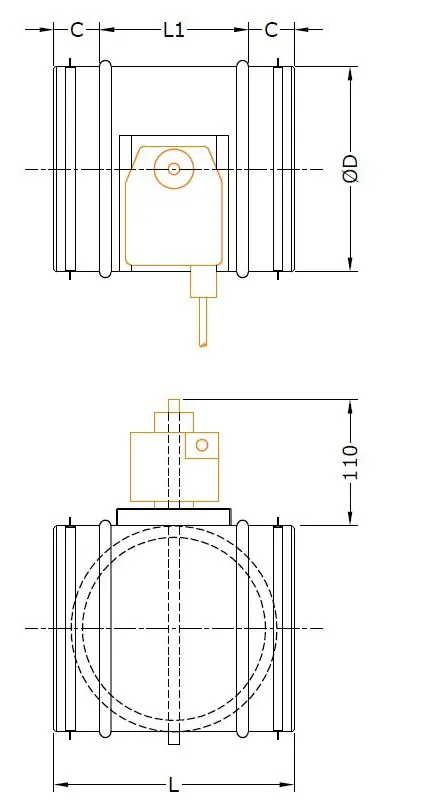

Damper Motorized Control
|
Diameter (mm) |
80 |
100 |
125 |
140 |
150 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
400 |
|
ØD |
78 |
98 |
123 |
138 |
148 |
158 |
178 |
198 |
223 |
248 |
278 |
313 |
398 |
|
L |
210 |
210 |
210 |
210 |
210 |
210 |
210 |
280 |
280 |
280 |
280 |
360 |
360 |
|
L1 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
180 |
180 |
180 |
180 |
230 |
230 |
|
C |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
50 |
50 |
50 |
50 |
65 |
65 |
Election Table
- αo : Wing angle / V
- (m/s) : Air velocity inside the duct
- ΔP (Pa) : Pressure drop / LWA (dB(A)): Sound power level
Accessories
- OPTIONAL: X Damper Motor
