Circular Displacement Diffuser
Circular Displacement Diffuser provides an effective and homogeneous air distribution by blowing air at 360 degrees horizontal angle and constant speed. It fits perfectly to Spiro system ducts with rubber gasketed duct connection. In order to adjust the air flow rate, a column valve can be added to the throat section, so that the air flow can be regulated according to the needs. Its decorative design is ideal for use in places where an aesthetic appearance is sought, providing both functionality and visual harmony.
General Features
- X The Circular Displacement Diffuser ensures that the blowing air is spread at a horizontal and constant speed of 360 degrees throughout the space.
- X Duct connection with rubber gasket. Compatible with Spiro system ducts.
- X In order to adjust the air flow rate, a column valve can be placed at the throat.
- X Thanks to its decorative appearance, it can be easily used in places where aesthetic appearance is desired.
Material
- STANDARD: Galvanized sheet production
- OPTIONAL: 304 quality stainless steel sheet

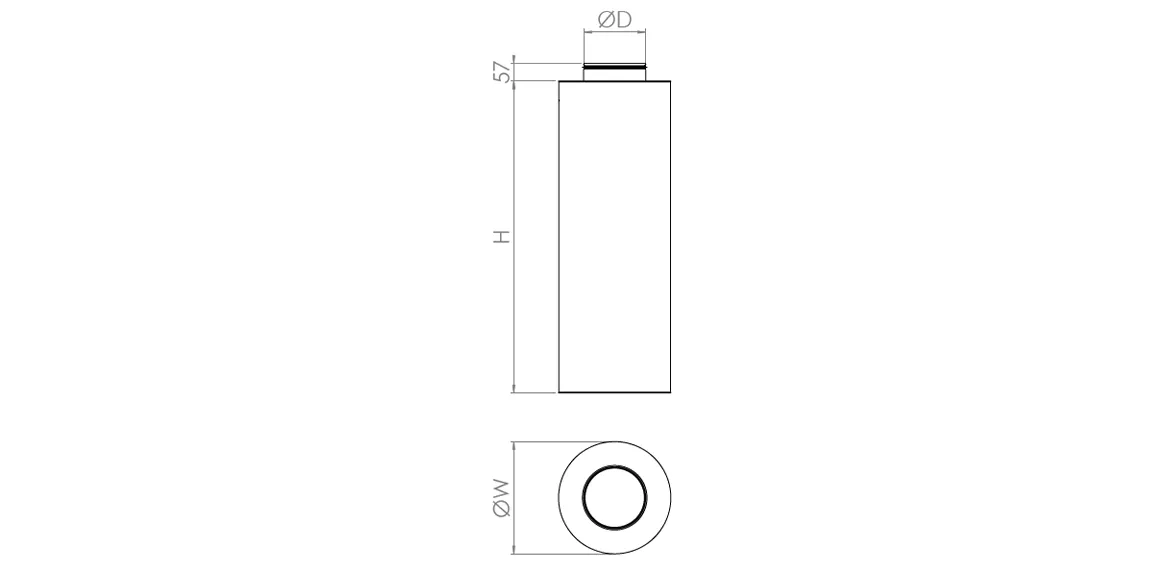

Case Types / Dimensioning
Weights may vary.
MODEL | ØW | H | ØD | Kg |
Ø125 | 320 | 600 | 124 | 11 |
Ø160 | 360 | 600 | 159 | 13 |
Ø200 | 360 | 1000 | 199 | 18 |
Ø250 | 410 | 1200 | 249 | 25 |
Ø315 | 475 | 1600 | 314 | 38 |
Ø400 | 560 | 1600 | 399 | 45 |
Ø500 | 660 | 2000 | 499 | 66 |
Ø630 | 790 | 2000 | 629 | 83 |
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
|
MODEL |
Bosphorus Air Speed (m/s) |
Debi (m3/h) |
Pressure Loss (Pa) |
Sound Pressure dB(A) |
|
Ø125 |
3,5 |
155 |
3 |
< 20 |
|
4 |
177 |
4 |
< 20 |
|
|
5 |
221 |
6 |
< 20 |
|
|
6 |
265 |
9 |
23 |
|
|
Ø160 |
3,5 |
253 |
3 |
< 20 |
|
4 |
289 |
4 |
< 20 |
|
|
5 |
362 |
5 |
< 20 |
|
|
6 |
434 |
9 |
25 |
|
|
Ø200 |
3,5 |
396 |
2 |
< 20 |
|
4 |
452 |
3 |
< 20 |
|
|
5 |
565 |
4 |
< 20 |
|
|
6 |
678 |
6 |
22 |
|
|
Ø250 |
3,5 |
619 |
3 |
< 20 |
|
4 |
707 |
4 |
< 20 |
|
|
5 |
884 |
6 |
< 20 |
|
|
6 |
1060 |
9 |
24 |
|
|
Ø315 |
3 |
842 |
3 |
< 20 |
|
4 |
1122 |
4 |
< 20 |
|
|
5 |
1403 |
6 |
< 20 |
|
|
Ø400 |
3 |
1357 |
4 |
< 20 |
|
4 |
1809 |
6 |
< 20 |
|
|
5 |
2262 |
9 |
< 20 |
|
|
Ø500 |
3 |
2121 |
5 |
< 20 |
|
4 |
2827 |
10 |
21 |
|
|
5 |
3534 |
12 |
26 |
|
|
Ø630 |
3 |
3367 |
8 |
< 20 |
|
4 |
4489 |
13 |
23 |
|
|
5 |
5611 |
20 |
30 |
Mounting Method
- X Channel Connection
Accessories
- X Damper
