Four-Way Diffuser with Adjustable Blades
Four-Way Diffusers with Adjustable Blades are specially designed with blades arranged in four different directions to meet the comfort criteria in heating, cooling and isothermal ventilation in the space. These blades can be adjusted to shoot horizontally, at an angle or vertically during heating and cooling processes at variable flow rates, providing effective use in both comfort and industrial ventilation conditions with the ability to supply air in wide flow ranges. In heating, the blades are vertical with the floor, and in cooling and isothermic firing, the blades are positioned at an acute angle with the floor to provide the most suitable air distribution for seasonal conditions. It is especially ideal for places with high ceilings such as airports, port buildings, sports complexes, shopping malls and industrial factory areas with a ceiling height of 3.80 m and above.
General Features
- X Four-way diffusers with adjustable blades are designed to provide the best comfort criteria in heating, cooling and isothermal ventilation in the comfort zone in the air flow created by the blades arranged in four different directions.
- X Adjustable blades can be set to shoot horizontally, at an angle or vertically while heating and cooling at variable flow rates.
- X Since it can supply air in wide flow ranges, it can be used both in comfort ventilation and industrial ventilation conditions.
- X In heating, the blades are vertical with the ground, while in cooling and isothermic firing, they are placed at an acute angle with the ground. In this way, the most suitable firing characteristics are provided according to winter and summer season conditions.
- X Four-way blowing diffusers are used in places with a ceiling height of 3.80 m. and higher, such as airport port buildings, sports complexes, shopping malls and industrial factory areas.
Material
- STANDARD: Standard Frame made of aluminum profile, Wings made of galvanized sheet
- OPTIONAL X
Case Types / Dimensioning
SIZE | B | ØD | G | H | J | P |
425×425 | 425 | 248 | 46 | 500 | 335 | 325 |
600×600 | 600 | 313 | 48 | 550 | 353 | 500 |
775×775 | 775 | 448 | 60 | 750 | 498 | 675 |
1050×1050 | 1050 | 498 | 60 | 800 | 523 | 950 |

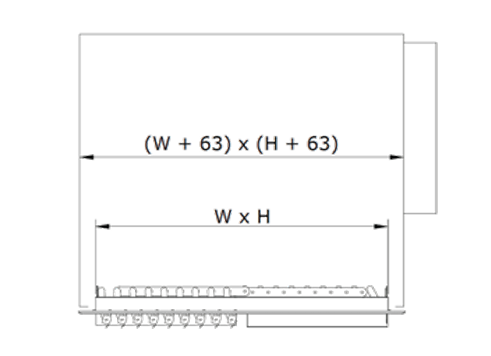

Box Dimension
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Election Table
|
DIMENSION |
V min (m3/h) |
V max (m3/h) |
|
425×425 |
360 |
900 |
|
600×600 |
720 |
2520 |
|
775×775 |
1260 |
4680 |
|
1050×1050 |
2160 |
7200 |
