Acoustic Blinds
Acoustic Louver is designed for use at the ends of air ducts, generator rooms, engine rooms and similar places where acoustic isolation is required. This louver is ideal for reducing sound transmission to the environment and minimizing outside sounds. Available in three different models - AL-150, AL-300 and AL-600 - it adapts to different performance requirements. The wing structure provides rain protection and powder coating offers high corrosion resistance. Furthermore, the bird wire prevents foreign objects from entering the air duct, which makes the roller shutter both functional and durable.
General Features
- X Acoustic Blinds are used at the ends of air ducts, generator rooms, machine rooms, etc. where acoustic insulation is required in order to reduce sound transmission to the environment or to reduce the sounds coming from the environment to the neighborhood.
- X There are 3 different model options, AL-150, AL-300 and AL-600, to meet different performance requirements.
- X It also provides rain protection thanks to its wing structure.
- X Painted with electrostatic powder paint. It has high corrosion resistance.
- X It prevents foreign objects from entering the canal with the wire.
Material
- STANDARD: Frame and sash galvanized sheet. Sash filling rock wool (50 kg/m3)
- OPTIONAL: X
Case Types / Dimensioning

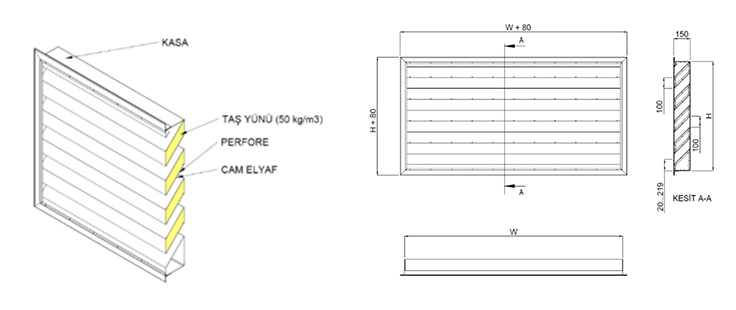

AL-150

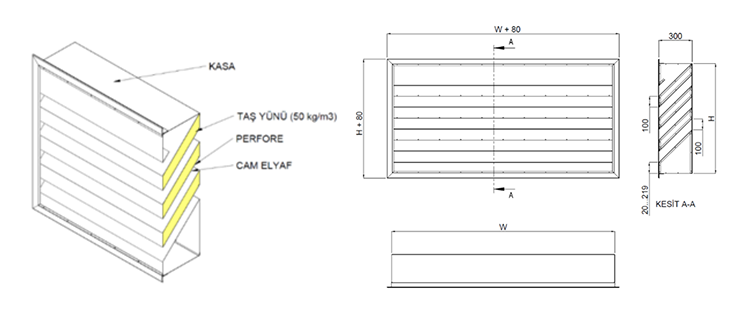

AL-300

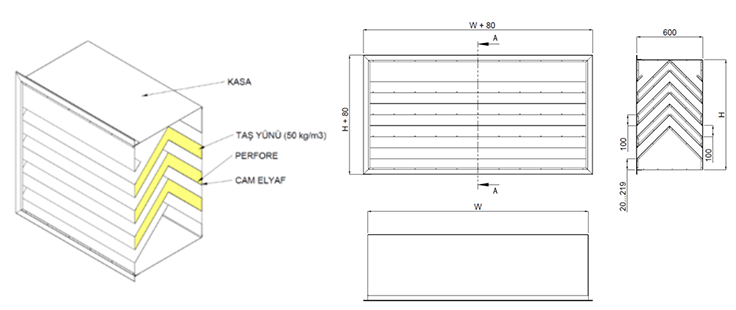

AL-600
Surface Coating
- STANDARD: RAL 9010 or RAL 9016 Electrostatic Powder Coating
- OPTIONAL: Different RAL color codes and unpainted manufacturing
Dimensioning
|
AL-150 |
W (mm) |
300 |
500 |
700 |
900 |
1100 |
1300 |
1500 |
1700 |
1900 |
2000 |
|
H (mm) |
370 |
570 |
770 |
970 |
1170 |
1370 |
1570 |
1770 |
1970 |
|
|
|
AL-300 |
W (mm) |
400 |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
1900 |
2000 |
|
H (mm) |
520 |
720 |
920 |
1120 |
1320 |
1520 |
1720 |
1920 |
2120 |
|
|
|
AL-600 |
W (mm) |
400 |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
1900 |
2000 |
|
H (mm) |
520 |
720 |
920 |
1120 |
1320 |
1520 |
1720 |
1920 |
2120 |
|
|
Selection Parameter
|
|
|||
|
H (mm) |
Number of Wings |
Effective Area Ratio (%) |
|
|
370...569 |
1 |
19...12 |
|
|
570...769 |
2 |
25...18 |
|
|
770...969 |
3 |
28...22 |
|
|
970...1169 |
4 |
29...24 |
|
|
1170...1369 |
5 |
30...26 |
|
|
1370...1569 |
6 |
31...27 |
|
|
1570...1769 |
7 |
32...28 |
|
|
1770...1969 |
8 |
32...29 |
|
|
1970 |
9 |
32 |
|
|
|
|||
|
H (mm) |
Number of Wings |
Effective Area Ratio (%) |
|
|
520...719 |
1 |
14...10 |
|
|
720...919 |
2 |
20...15 |
|
|
920...1119 |
3 |
23...19 |
|
|
1120...1319 |
4 |
25...22 |
|
|
1320...1519 |
5 |
27...23 |
|
|
1520...1719 |
6 |
28...25 |
|
|
1720...1919 |
7 |
29...26 |
|
|
1920...2119 |
8 |
30...27 |
|
|
2120 |
9 |
30 |
|
|
|
|||
|
H (mm) |
Number of Wings |
Effective Area Ratio (%) |
|
|
520...719 |
1 |
14...10 |
|
|
720...919 |
2 |
20...15 |
|
|
920...1119 |
3 |
23...19 |
|
|
1120...1319 |
4 |
25...22 |
|
|
1320...1519 |
5 |
27...23 |
|
|
1520...1719 |
6 |
28...25 |
|
|
1720...1919 |
7 |
29...26 |
|
|
1920...2119 |
8 |
30...27 |
|
|
2120 |
9 |
30 |
|
Performance Parameters
The weight values given are ± 10%|
|
||||||||
|
Octave |
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
|
Sound |
4 |
4 |
6 |
8 |
11 |
11 |
11 |
10 |
|
Sound Power Level (dB) Produced by Acoustic Louver at Surface |
48 |
41 |
34 |
35 |
30 |
22 |
13 |
12 |
|
Sound Power Level (dB) Produced by Acoustic Louver when Surface |
66 |
58 |
51 |
51 |
50 |
47 |
41 |
28 |
|
|
||||||||
|

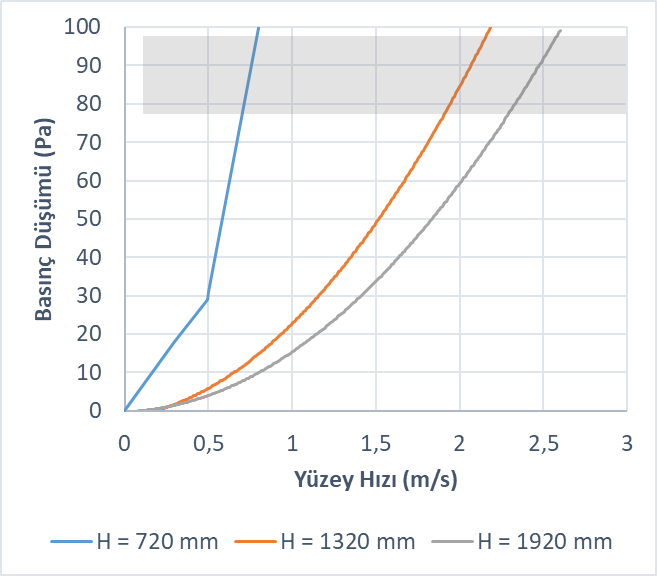

Octave |
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
|
Sound |
6 |
6 |
9 |
13 |
21 |
20 |
16 |
13 |
|
Sound Power Level (dB) Produced by Acoustic Louver at Surface |
48 |
41 |
34 |
30 |
25 |
20 |
13 |
12 |
|
Sound Power Level (dB) Produced by Acoustic Louver when Surface |
66 |
58 |
51 |
47 |
45 |
43 |
39 |
28 |
|
|
||||||||
|
Octave Band Center Frequencies (Hz) |
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
|
Sound Reduction Index (dB) |
7 |
8 |
13 |
23 |
37 |
33 |
29 |
29 |
|
Sound Power Level (dB) Produced by Acoustic Louver at Surface |
54 |
46 |
37 |
32 |
28 |
24 |
15 |
12 |
|
Sound Power Level (dB) Produced by Acoustic Louver when Surface |
71 |
66 |
57 |
50 |
47 |
46 |
41 |
30 |
Mounting Options / Hole Sizes
| Mounting Method | Hole Size |
| Screw | W + 15 mm / H + 15 mm |
Accessories
- X Wire Cage
